Mueller Streamline PRESS-PF01905 PRS No Stop Coupling (PxP) SD

Product Description

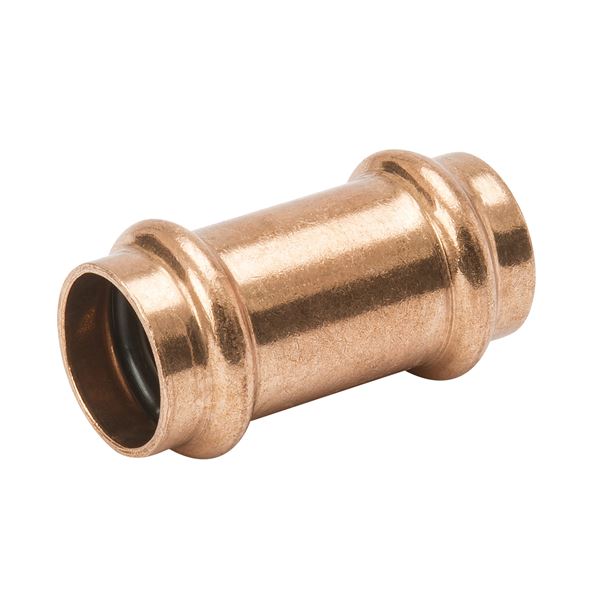

The Mueller Streamline PRESS-PF01905 PRS™ No Stop Coupling is a copper coupling designed as a flameless joining alternative for plumbing or mechanical applications. This P x P coupling has 3/4'' x 3/4'' end sizes. Available in sizes ranging from 1/2” to 4” in diameter.

• Flameless joining alternative
• For plumbing or mechanical applications
• Available sizes ranging from 1/2” to 4” in diameter

Product Highlights

Copper coupling with press end connections. Ideal for plumbing and mechanical applications requiring a flameless joining solution.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF01905

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 3/4 in
• Second End Type: Press
• Second End Size: 3/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 1.81 in
• Overall Height: 1.22 in
• Overall Width: 1.22 in
• Mueller Description: 3/4 P X P NO-STOP COUP
