Mueller Streamline PRESS-PF01049 PRS Coupling Reducer (PxP) SD

Product Description

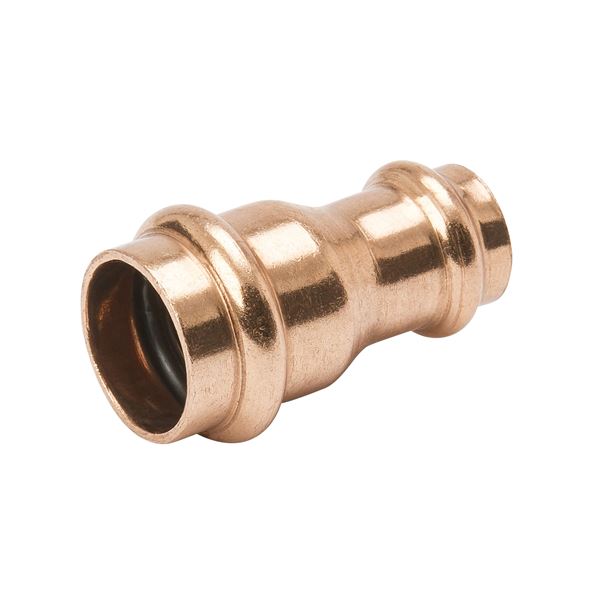

The Mueller Streamline PRESS-PF01049 is a copper reducer with press end types. This Streamline® PRS™ Copper-Press fitting provides a flameless joining alternative for plumbing or mechanical applications. It has a maximum operating pressure of 300 psi and can be used in temperatures from -20 ºF to 250 ºF.

• Flameless joining alternative for plumbing or mechanical applications
• Available sizes ranging from 1/2” to 4” in diameter
• End Type: Press

Product Highlights

Copper reducer with press end types for plumbing and mechanical applications. Operating temperature ranges from -20 ºF to 250 ºF.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PRESS-PF01049

Technical Specifications

• Material: COPPER
• Operating Temperature [Min]: -20 ºF
• Operating Temperature [Max]: 250 ºF
• Operating Pressure [Max]: 300 psi
• End Type: Press
• End Size: 1 in
• Second End Type: Press
• Second End Size: 3/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 2.11 in
• Overall Height: 1.47 in
• Overall Width: 1.47 in
