Mueller Streamline press-117-725pv 1 in Press Ball Valve

Product Description

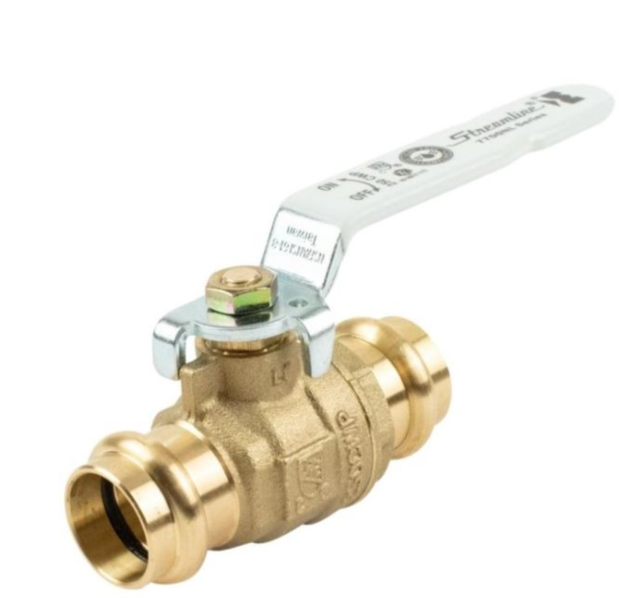

The MUELLER STREAMLINE press-117-725pv is a 1-inch press x press lead-free ball valve designed for use in potable water and hydronic piping systems. This valve uses press-fit end connections on both sides, eliminating the need for soldering or threading during installation. The lead-free construction meets regulatory requirements for drinking water applications. Licensed plumbers and mechanical contractors install this valve in commercial and residential systems where fast, reliable shutoff is required.

This valve is suited for residential and light commercial plumbing installations where press-fit technology is specified. The press x press end configuration allows inline installation in copper piping systems without open flame, making it appropriate for retrofits and new construction alike. It serves as a direct replacement for the PRESS-107-725PV and fits the same press-fit piping configurations.

Key Features

• 1-inch press x press end connections for tool-based, flame-free installation
• Lead-free construction meets safe drinking water compliance requirements
• Full-port ball valve design provides low-restriction flow when open
• Direct replacement for PRESS-107-725PV
• Suitable for potable water and hydronic piping applications

Compatibility

Serves as a direct replacement for PRESS-107-725PV. Designed for use in 1-inch press-fit copper piping systems in residential and commercial plumbing applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and depressurize the line before beginning work. Use a manufacturer-approved press tool with the correct jaw size for 1-inch press fittings. Verify that pipe ends are clean, round, and fully inserted to the depth mark before pressing.

Technical Specifications

• Connection Size: 1 inch
• Connection Type: Press x Press
• Lead-Free: Yes
• Valve Type: Ball Valve

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: press-117-725pv
