Mueller Streamline PF40221 PRS Tee (PxPxP) LD 2-1/2 feet' x 1 feet' x 2-1/2 feet'

Product Description

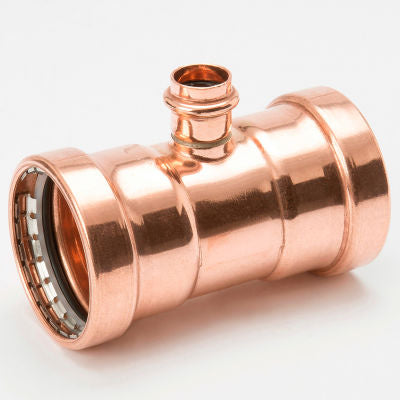

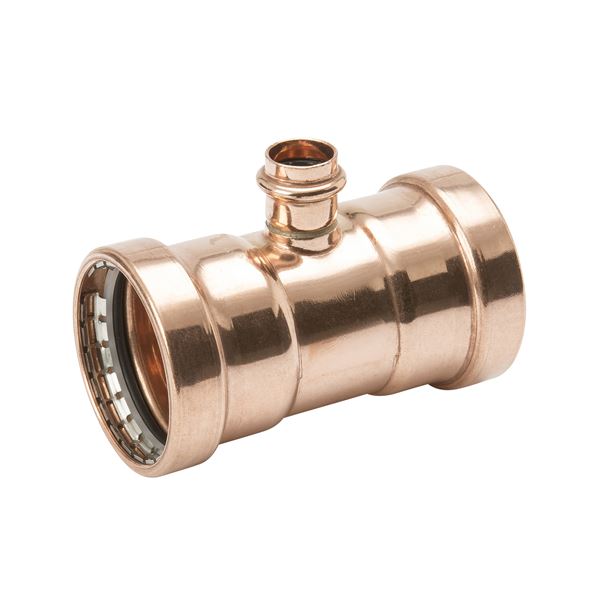

The MUELLER STREAMLINE PF40221 PRS Tee is a copper-press fitting designed for flameless joining in plumbing and mechanical applications. This PxPxP tee, measuring 2-1/2'' x 1'' x 2-1/2'', offers a reliable solution for connecting copper tubing. It operates within a temperature range of -20 °F to 250 °F and handles pressures up to 300 psi, making it suitable for various systems.

• Flameless joining alternative for plumbing or mechanical applications.
• Available in sizes ranging from 1/2” to 4” in diameter.
• PRS Copper Press Fittings for secure connections.

Product Highlights

Flameless, mechanical press joining for copper tubing.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF40221

Technical Specifications

• Material: COPPER
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: Press
• End Size: 2 1/2 in
• Second End Type: Press
• Second End Size: 1 in
• Third End Type: Press
• Third End Size: 2 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Fitting Type: Reducing Tee
• Lead Free: Y
• Nominal Size: 2-1/2 x 1 x 2-1/2
• Connection Type: Press X Press X Press
