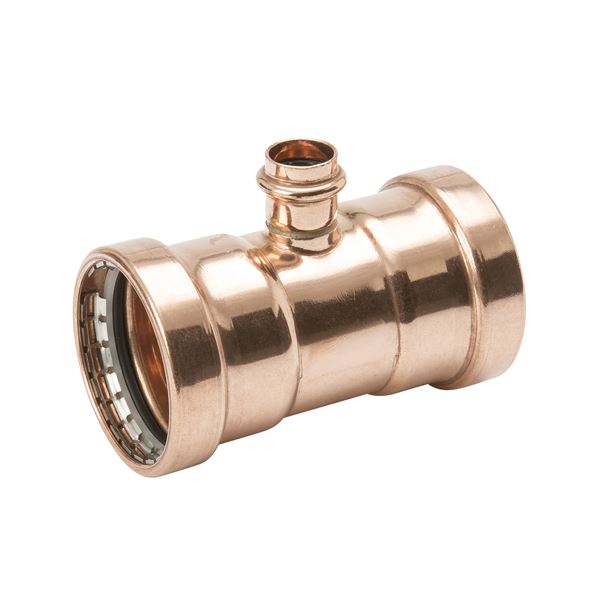

Mueller Streamline PF40220 PRS Tee (PxPxP) LD 2-1/2 feet' x 1-1/4 feet' x 2-1/2 feet'

Product Description

The MUELLER STREAMLINE PF40220 PRS™ Tee (PxPxP) LD is a copper press fitting designed for flameless joining in plumbing and mechanical applications. This 2-1/2 inch by 1-1/4 inch by 2-1/2 inch tee is made from durable copper, offering a maximum operating pressure of 300 psi and an operating temperature range from -20 °F to 250 °F. It provides a secure, efficient connection for various pipe sizes.

• Flameless joining alternative for plumbing or mechanical applications.
• Available in sizes ranging from 1/2” to 4” in diameter.
• Constructed from durable copper, ensuring long-lasting performance.

Product Highlights

Flameless copper press tee for plumbing and mechanical systems, offering secure connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF40220

Technical Specifications

• Material: COPPER
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Type 1: Press
• End Size 1: 2 1/2 in
• End Type 2: Press
• End Size 2: 1 1/4 in
• End Type 3: Press
• End Size 3: 2 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 9.67 in
• Overall Height: 5.09 in
• Overall Width: 3.18 in
• X Dimension: 1.73 in
• X1 Dimension: 5.22 in
• Y Dimension: 1.81 in
