Mueller Streamline PF40194 PRS Tee (PxPxP) LD 4 feet' x 4 feet' x 1-1/4 feet'

Product Description

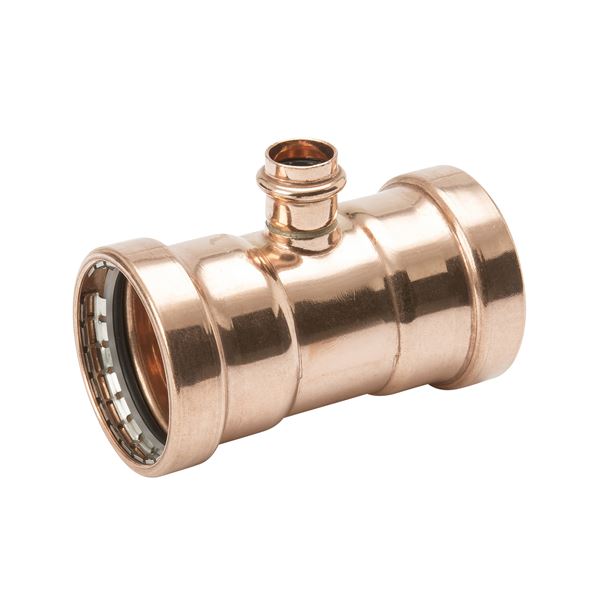

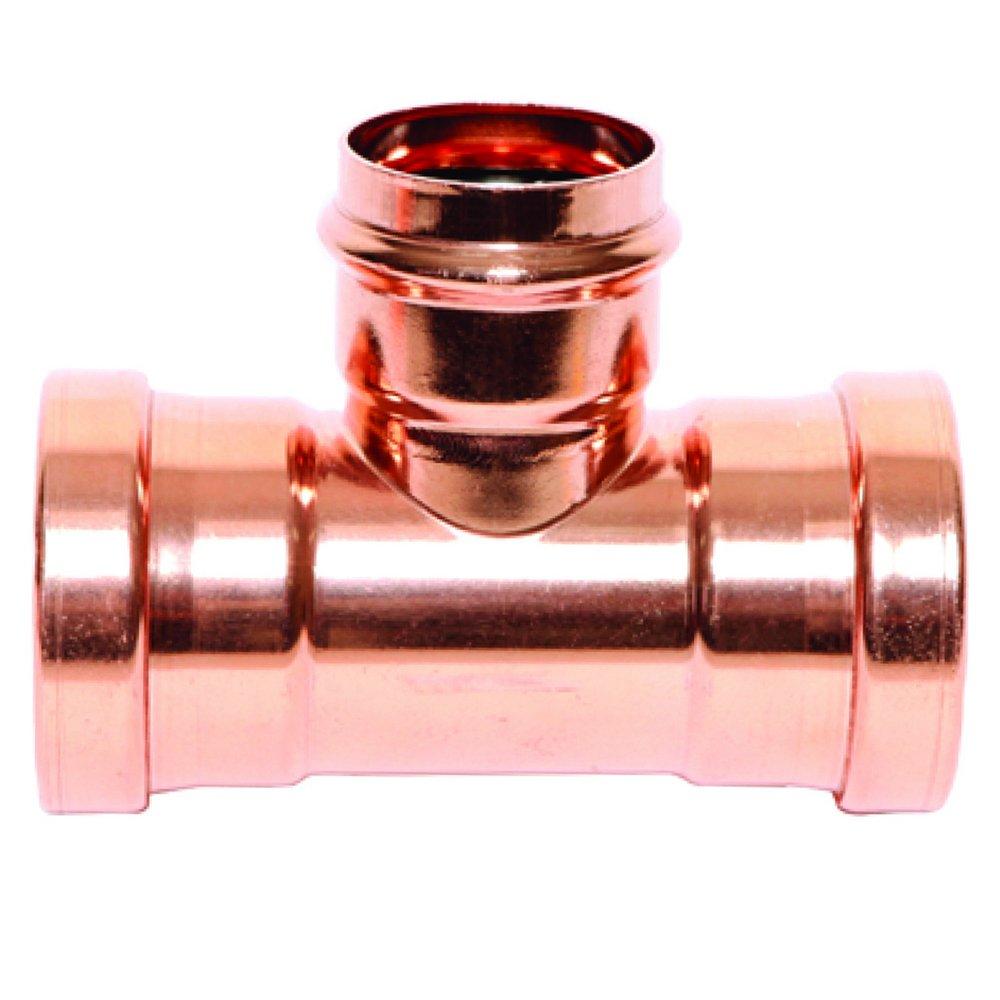

The MUELLER STREAMLINE PF40194 is a copper tee featuring P x P x P press connections, designed for 4'' x 4'' x 1-1/4'' pipe configurations. Constructed from durable copper, this tee is suitable for plumbing and mechanical applications. It operates within a temperature range of -20°F to 250°F and can withstand a maximum operating pressure of 300 psi. This fitting complies with industry standards such as ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13, ensuring reliable performance.

• Durable copper construction with PxPxP press connections for secure fitting.
• Designed for 4'' x 4'' x 1-1/4'' pipe configurations in various applications.
• Operates efficiently across a wide temperature range from -20°F to 250°F with a 300 psi maximum operating pressure.

Product Highlights

Durable copper construction ensures reliability and compliance with multiple industry standards for plumbing and mechanical systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF40194

Technical Specifications

• Material: Copper
• Operating Temperature Range: -20 °F to 250 °F
• Maximum Operating Pressure: 300 psi
• End Type: Press
• End Size: 4 in
• Second End Size: 4 in
• Third End Size: 1 1/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13, ASTM B-88
• X Dimension: 1.28 in
• X1 Dimension: 1.28 in
• Y Dimension: 2.66 in
• Category: Tee
• Nominal Size: 4 x 4 x 1-1/4 in
• FM Approved: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• UL Listed: No
