Mueller Streamline PF40145 PRS Tee 3 feet' x 3 feet' x 1/2 feet'

Product Description

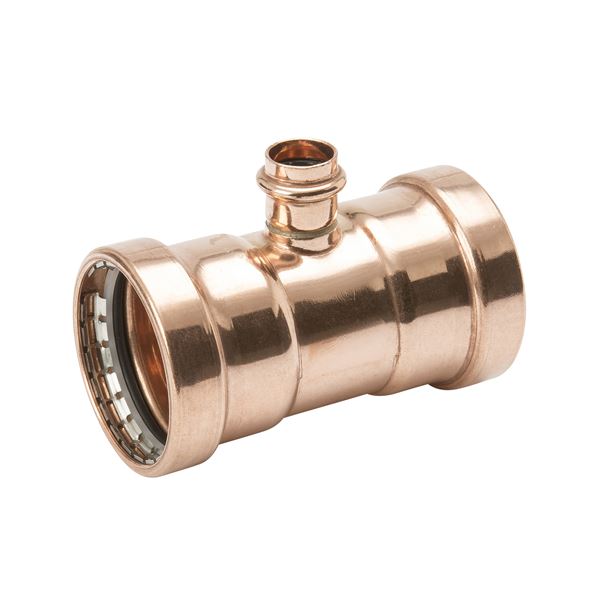

The MUELLER STREAMLINE PF40145 is a copper PRS Press Fitting Tee designed for various piping applications. This tee features Press end types with sizes 3 inches, 3 inches, and 1/2 inch, allowing for secure connections. It is constructed from copper and can operate within a temperature range of -20 °F to 250 °F, with a maximum operating pressure of 300 psi. It meets industry standards including ASME B16.51 and NSF/ANSI 61.

• PRS Copper Press Fitting for secure and efficient connections in piping systems.
• Withstands operating temperatures ranging from -20 °F to 250 °F for diverse environments.
• Designed for a maximum operating pressure of 300 psi, ensuring robust performance.

Product Highlights

Copper construction ensures durability and compliance with multiple industry standards for reliable piping systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF40145

Technical Specifications

• Weight: 2.07 lb
• Material: Copper
• Operating Temperature Minimum: -20 °F
• Operating Temperature Maximum: 250 °F
• Maximum Operating Pressure: 300 psi
• First End Type: Press
• First End Size: 3 in
• Second End Type: Press
• Second End Size: 3 in
• Third End Type: Press
• Third End Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 5.43 in
• Overall Height: 4.38 in
• Overall Width: 3.69 in
• X: 0.87 in
• X1: 0.87 in
• Y: 1.79 in
