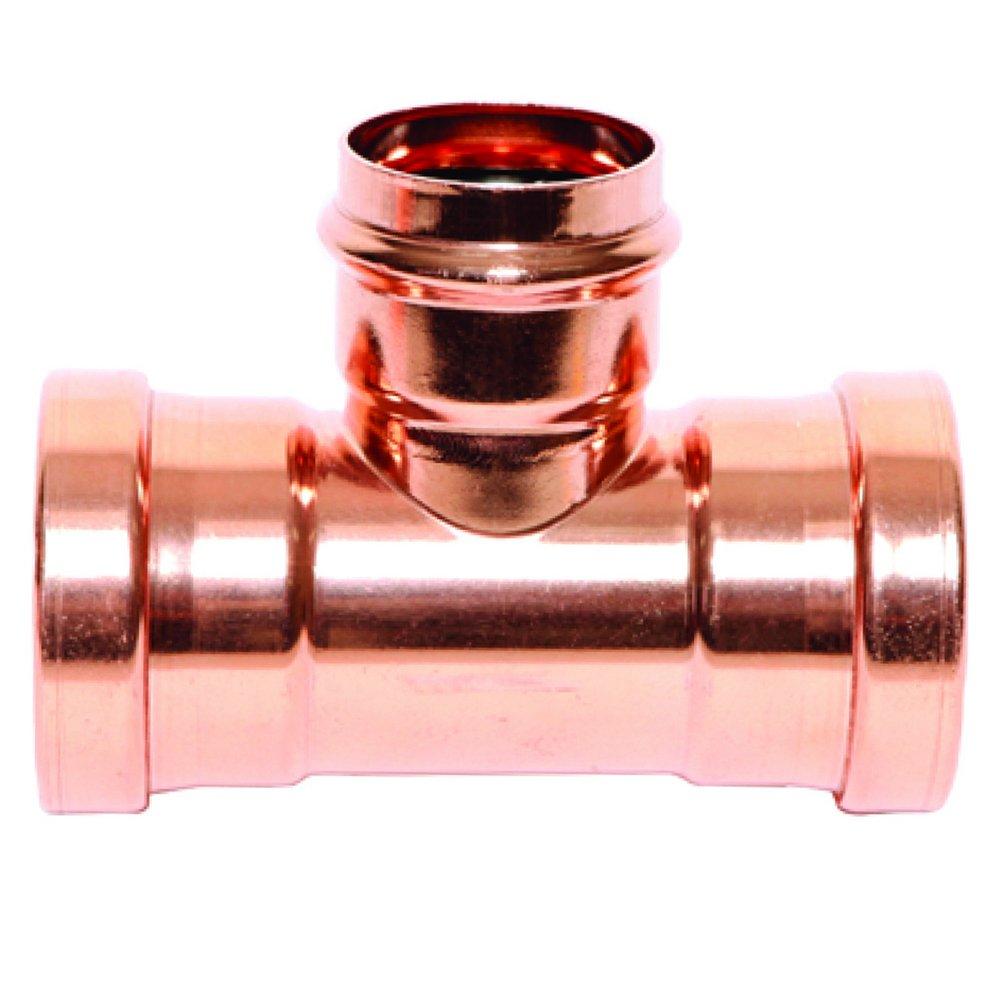

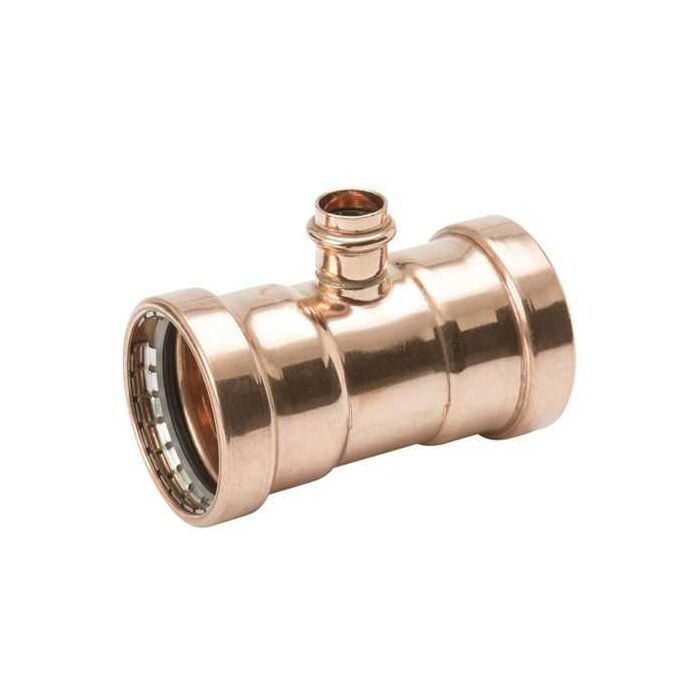

Mueller Streamline PF40129 PRS Tee (PxPxP) LD, Copper Tee 2-1/2 x 2-1/2 x 1/2

Product Description

The MUELLER STREAMLINE PF40129 PRS Copper Press Tee (PxPxP) LD is designed for reliable press connections in various piping applications. Constructed from durable copper, this tee features dimensions of 2-1/2 inches x 2-1/2 inches x 1/2 inch. It is suitable for plumbing and mechanical systems, accommodating an operating temperature range of -20°F to 250°F and a maximum operating pressure of 300 psi. This fitting ensures secure and efficient pipe branching.

• Designed for PRS Copper Press Fittings, ensuring secure press connections.
• Constructed from durable copper, suitable for a wide range of piping applications.
• Withstands operating temperatures from -20°F to 250°F and pressures up to 300 psi.

Product Highlights

Features SURE PRS™ Seal Technology for 360° leak detection and anti-creep protection during installation.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF40129
• Country of Origin: Global

Technical Specifications

• Weight: 1.52 lb
• Material: Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Connection Type: Press
• End Connection 1 Size: 2 1/2 in
• End Connection 2 Size: 2 1/2 in
• End Connection 3 Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13, ANSI 61-G, CSA MSE 13
• Overall Length: 5.12 in
• Overall Height: 3.85 in
• Overall Width: 3.18 in
• X Dimension: 0.87 in
• X1 Dimension: 0.87 in
• Y Dimension: 1.52 in
• Manufacturer: Mueller Industries (Streamline)
• ASTM Standards: ASTM B-88 Type K, ASTM B-88 Type L, ASTM B-88 Type M
• Collection: Streamline
• FM Approved: No
• Fitting Type: Tee
• IAPMO Listed: Yes
• Lead Law Compliance: Lead Law Compliant and Certified
• Material Type: C12200, EPDM
• UL Listed: No
• UPC: 685768399414
