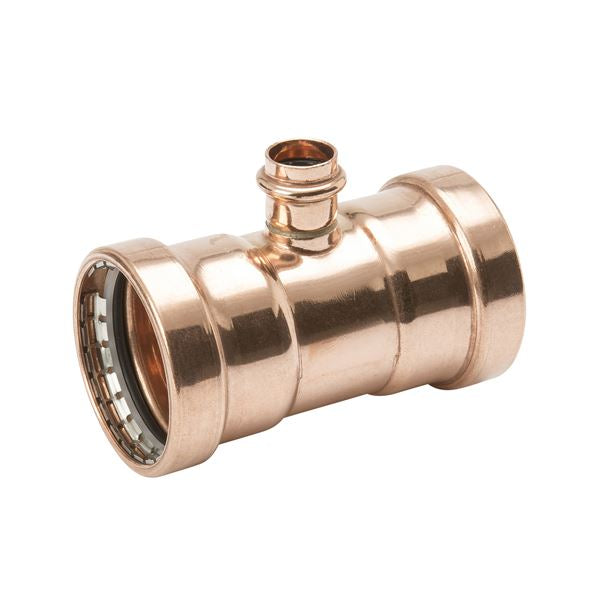

Mueller Streamline PF40126 PRS Tee (PxPxP) LD, Copper Tee 2-1/2 feet' x 2-1/2 feet' x 1-1/4 feet'

Product Description

The MUELLER STREAMLINE PF40126 is a copper PRS™ Tee (PxPxP) LD, designed for use with copper press fittings in plumbing and piping systems. This reducing tee measures 2-1/2'' x 2-1/2'' x 1-1/4'' and is constructed from durable copper. It supports a maximum operating pressure of 300 psi and an operating temperature range from -20 °F to 250 °F, ensuring reliable performance in various applications. It conforms to multiple industry standards including ASME B16.51 and NSF/ANSI 61.

• Made from COPPER material
• Press end connections
• Operating temperature range from -20 °F to 250 °F

Product Highlights

Durable copper construction with press end connections, suitable for plumbing systems requiring a reducing tee.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF40126
• Country of Origin: United States

Technical Specifications

• Material: COPPER
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: Press
• End Size: 2 1/2 in
• Second End Type: Press
• Second End Size: 2 1/2 in
• Third End Type: Press
• Third End Size: 1 1/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• X: 1.24 in
• X1: 1.24 in
• Y: 1.83 in
• Item: EC4ULP
• SKU: 503575
• Category: TEE
• Fitting/Connector Type: Tee
• Nominal Size: 2-1/2 x 2-1/2 x 1-1/4 in
• Lead Free: Yes
