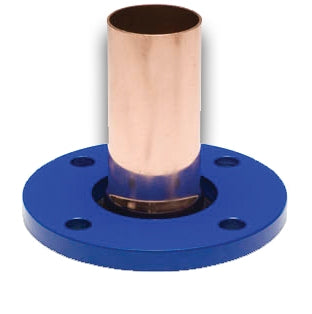

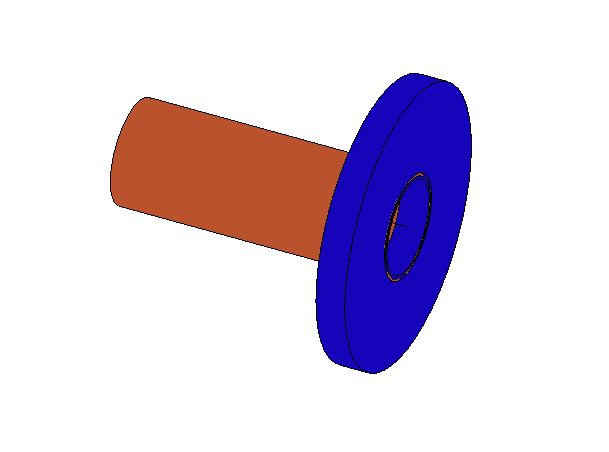

Mueller Streamline PF12746 PRS Spigot Flange 2 1/2 Inch

Product Description

The MUELLER STREAMLINE PF12746 PRS Spigot Flange is a 2-piece copper-press fitting designed for flameless joining in plumbing or mechanical applications. Constructed from copper, this fitting can withstand a maximum operating pressure of 300 psi and temperatures from -20 °F to 250 °F. Its 2 1/2 inch end sizes make it suitable for various installations requiring a secure and efficient connection, meeting standards like ASME B16.51 and NSF/ANSI 61.

• Provides a flameless joining alternative for plumbing and mechanical systems.
• Designed for applications requiring a 2 1/2 inch fitting with a flange connection.
• Manufactured from copper, ensuring durability and compliance with industry standards.

Product Highlights

Copper-press spigot flange for flameless plumbing and mechanical connections, rated for 300 psi and -20 °F to 250 °F.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF12746

Technical Specifications

• Material: COPPER
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• First End Type: Fitting
• First End Size: 2 1/2-0.060 in
• Second End Type: Flange
• Second End Size: 2 1/2-5.500 in
• Certifications: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 7.00 in
• Overall Height: 6.00 in
• Overall Width: 7.00 in
• Dimension A: 5.50 in
• Dimension L: 6.00 in
