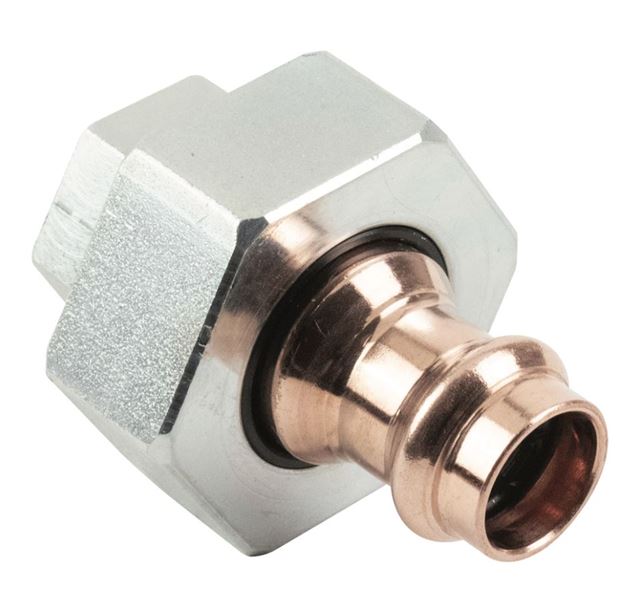

Mueller Streamline PF11505 PRS Dielectric Union 1 feet' x 1 feet'

Product Description

The MUELLER STREAMLINE PF11505 PRS Dielectric Union is designed for PRS copper press fittings, connecting a 1-inch press (P) end to a 1-inch female pipe thread (FPT) end. Constructed from copper and steel, this union operates within a temperature range of -22 °F to 250 °F and can withstand a maximum operating pressure of 300 psi. It complies with industry standards including ASME B16.51, NSF/ANSI 61, NSF/ANSI 372, and CSA, ensuring reliable performance in plumbing and HVAC applications.

• Designed for PRS Copper Press Fittings
• Connects Press (P) to Female Pipe Thread (FPT)
• Withstands operating temperatures from -22 °F to 250 °F and 300 psi maximum pressure

Product Highlights

Copper/steel construction for dielectric separation in 1-inch press to FPT connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF11505

Technical Specifications

• Material: Copper/Steel
• Operating Temperature Minimum: -22 °F
• Operating Temperature Maximum: 250 °F
• Operating Pressure Maximum: 300 psi
• End Type: Press
• End Size: 1 inch
• Second End Size: 1 inch
• Second End Type: FPT
• Standards: ASME B16.51, NSF/ANSI 61, NSF/ANSI 372, CSA
