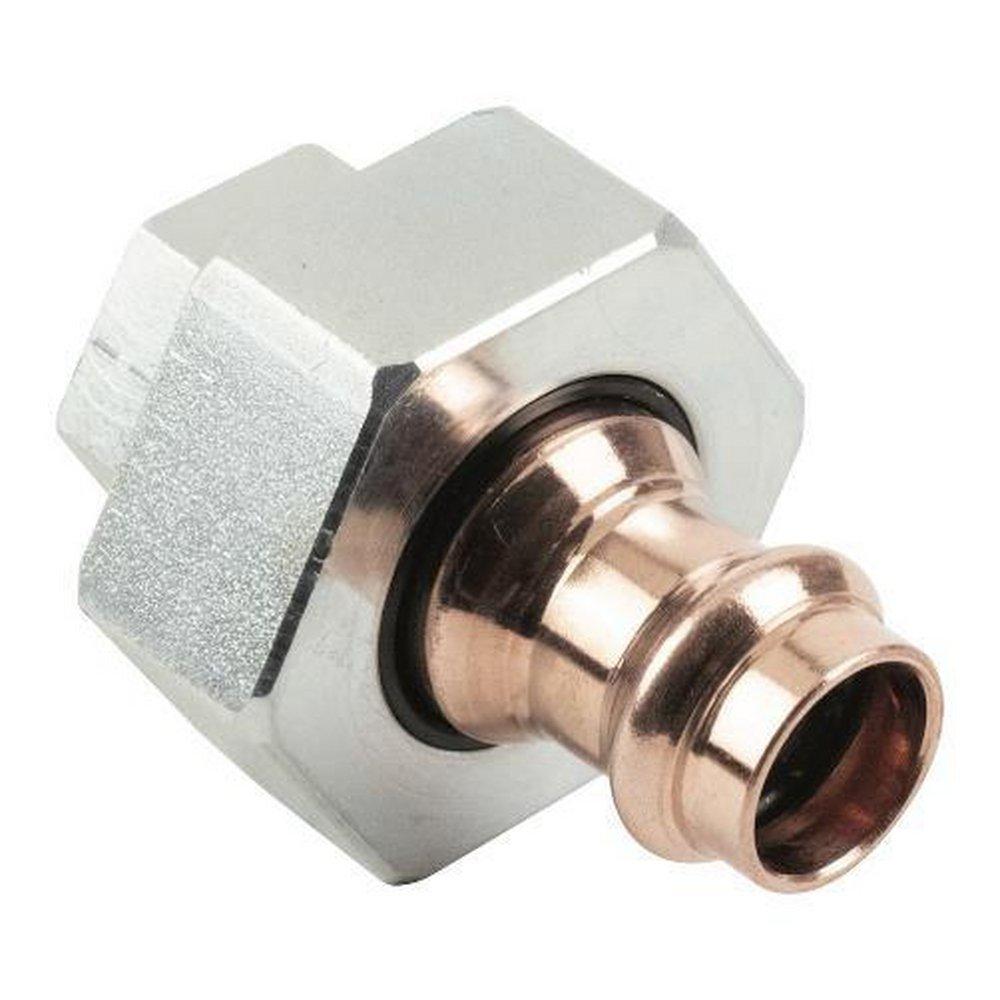

Mueller Streamline PF11504 PRS™ dielectric union (PxFPT) 3/4 feet' x 3/4 feet'

Product Description

The Mueller Streamline PF11504 PRS™ Dielectric Union (PxFPT) is a 3/4 inch x 3/4 inch union designed for plumbing and mechanical applications. Constructed from copper and steel, it features Press x FPT connections. This union operates from -21°F to 250°F and withstands a maximum pressure of 300 psi. It complies with ASME B16.51, NSF/ANSI 61, and NSF/ANSI 372 standards, ensuring reliable performance and compatibility in various systems.

• ASME B16.51 compliant
• NSF/ANSI 61 compliant
• CSA certified

Product Highlights

Dielectric union with Press x FPT connections, suitable for plumbing and mechanical systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF11504
• Country of Origin: Global

Technical Specifications

• Weight: 0.91 lb
• Material: Copper/Steel
• Operating Temperature Min: -21 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: Press
• End Size: 3/4 in
• Second End Size: 3/4 in
• Second End Type: FPT
• Standards: ASME B16.51, NSF/ANSI 61, NSF/ANSI 372, CSA, ASTM B-88
• Overall Length: 2.68 in
• Overall Height: 2.50 in
• Overall Width: 2.17 in
• Mueller Description: 3/4 P X FPT DIELRC UNION
• Collection: Streamline® PRS™
• Fitting Type: Straight, Dielectric Union
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material Type: C12200
• Origin: Global
• UL Listed: No
• UPC: 685768444442
