Mueller Streamline PF04083 Tee 1-1/4 x 1/2 x 1-1/4 Inch

Product Description

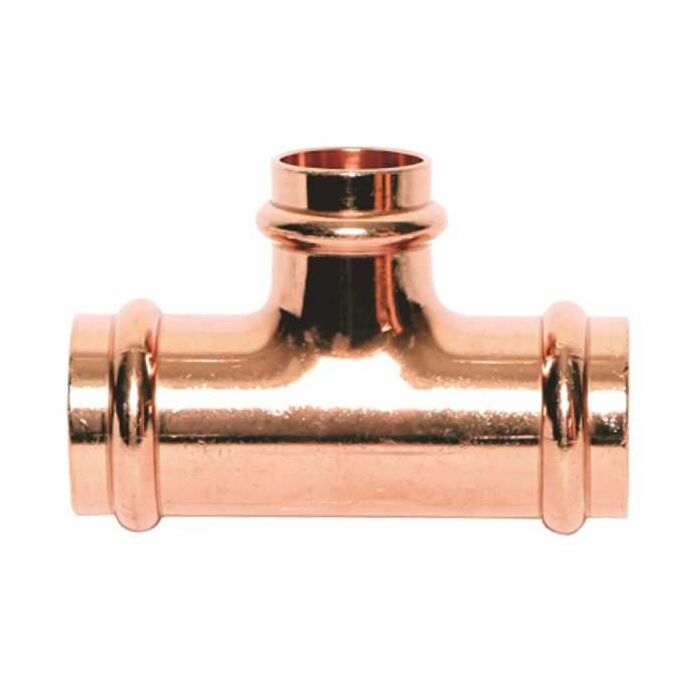

The Mueller Streamline PF04083 Tee is a copper press fitting designed for plumbing and mechanical applications. This 1-1/4 x 1/2 x 1-1/4 inch tee is suitable for both above and below ground use. It features a 300 PSI pressure rating and operates within a temperature range of -20°F to 250°F, providing a flameless, mechanical press joining solution for copper tubing systems.

• For use in plumbing or mechanical applications in above and below ground applications as allowed by local code
• Provides reliable 360° leak detection for 1/2" to 2" fittings, regardless of orientation
• Anti-creep protection during installation and service

Product Highlights

Fast, easy to use, and environmentally friendly system compatible with most common pressing tools.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF04083

Technical Specifications

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF04083
• Item Type: Tee
• End Connection Type: P x P x P
• Nominal Size: 1-1/4 x 1/2 x 1-1/4 Inch
• Pressure Rating: 300 PSI
• Material: Copper
• End Size (c): 1 1/4"
• Temperature Range: -20 Deg F to 250 Deg F
• Connection Type: Press
• SKU: 503523
• Manufacturer: Mueller Industries (Streamline)
• Certifications: ANSI 372, ANSI 61-G, ASME B16.51, ASTM B-88, CSA MSE 13, IAPMO Listed, NSF 372, NSF 61-G, NSF Certified
• Clean Bagged: No
• Collection: Streamline
• FM Approved: No
• Lead Law Compliance: Lead Law Compliant and Certified
• UL Listed: No
• UPC: 685768406013
