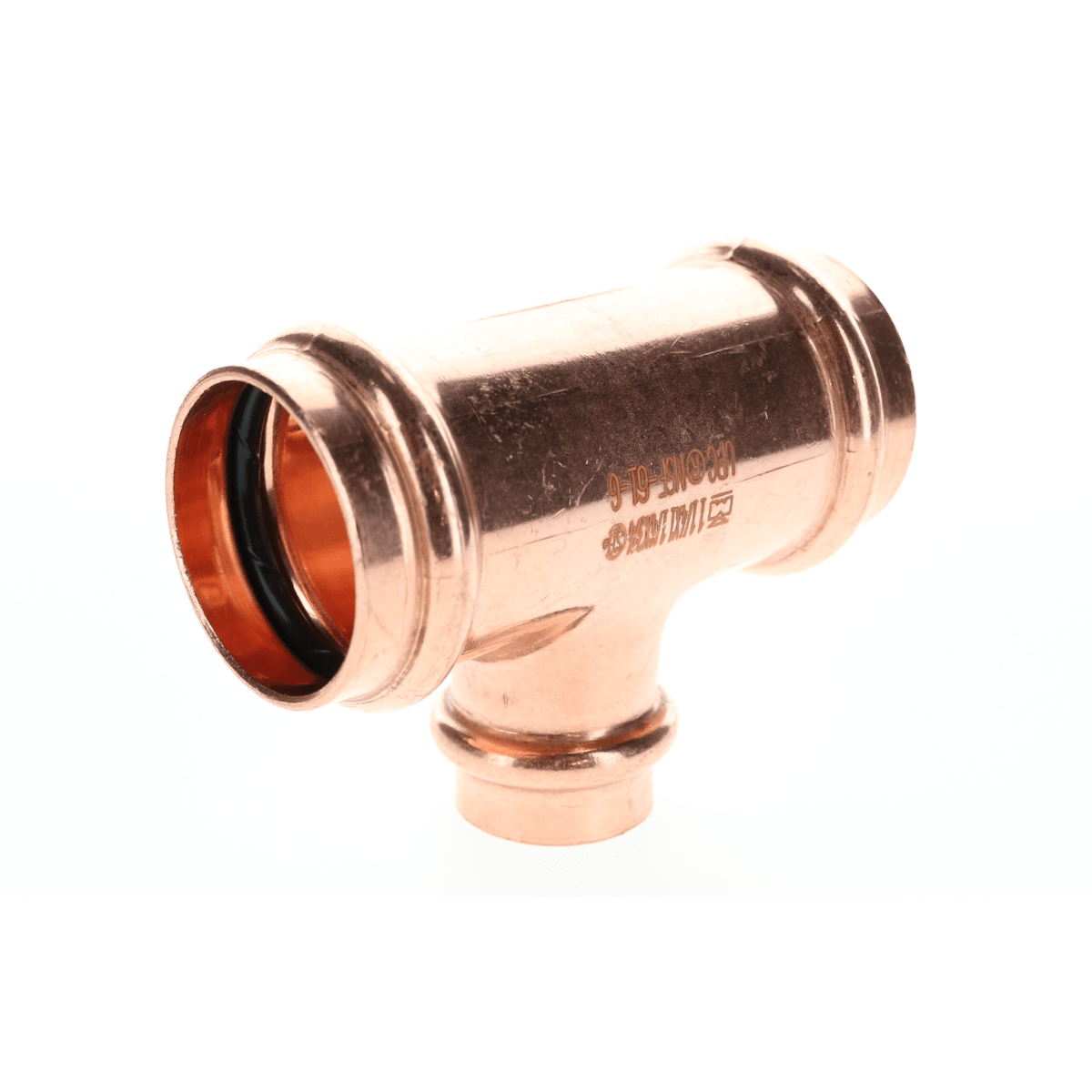

Mueller Streamline PF04070 1-1/4 x 1-1/4 x 3/4 Press Reducing Tee

Product Description

The Mueller Streamline PF04070 is a one and one-quarter inch by one and one-quarter inch by three-quarter inch press reducing tee designed for versatile plumbing applications. This product ensures a reliable and durable connection for expanding or reducing plumbing systems.

• Designed for a wide range of applications including potable water, hydronic heating, chilled water, compressed air, and more.
• Constructed from wrought copper for durability and reliable performance under pressure.
• Rated for a maximum pressure of 200 psi and temperature range from negative twenty to two hundred fifty degrees Fahrenheit.

Product Highlights

The PF04070 reduces piping size effectively while providing a secure and straightforward installation without the need for flames or soldering.

Product Information

Standard Information

• Brand: Mueller Streamline
• Catalog Number: PF04070

Technical Specifications

• Fitting/Connector Type: Tee
• Material: Wrought Copper
• Nominal Size: 1-1/4 x 1-1/4 x 3/4 inches
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Dimensions: 3.27 inches long x 1.73 inches wide x 2.6 inches high
• Warranty: 50 Years Limited
