Mueller Streamline PF02834 prs 90 degree elbow long radius street 3/4 inch x 3/4 inch

Product Description

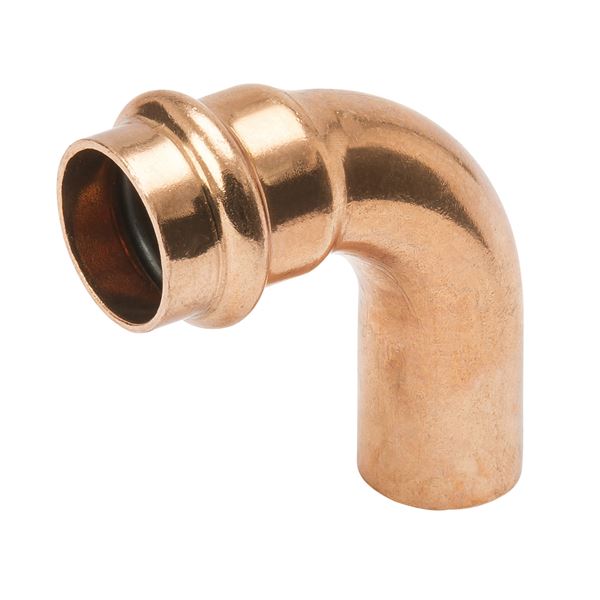

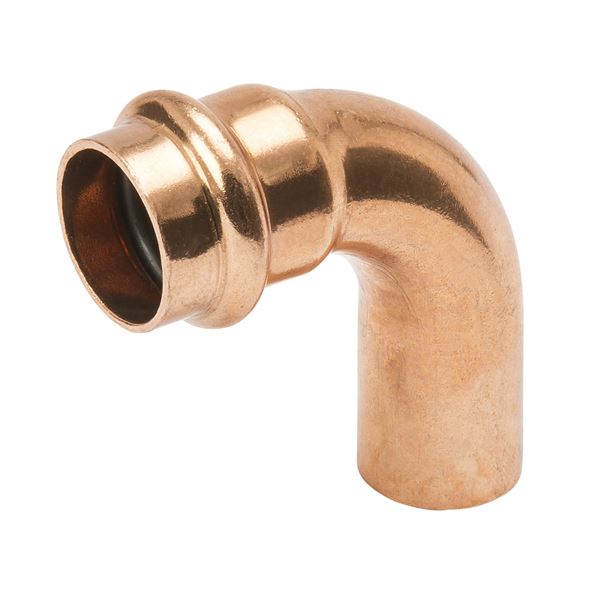

The MUELLER STREAMLINE PF02834 PRS™ Copper-Press Fitting is a 90-degree long radius street elbow designed for flameless joining in plumbing and mechanical applications. Constructed from copper, this fitting features a 3/4 inch x 3/4 inch end size. It operates within a temperature range of -20 °F to 250 °F and can withstand a maximum operating pressure of 300 psi. This fitting meets multiple industry standards including ASME B16.51 and NSF/ANSI 61.

• Flameless joining alternative for secure plumbing and mechanical connections.
• Durable copper construction ensures longevity and performance.
• Features a 90-degree long radius design with 3/4 inch press and fitting end types.

Product Highlights

Copper press fitting for plumbing and mechanical applications, featuring a 90-degree long radius design and 3/4 inch ends.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF02834

Technical Specifications

• Material: COPPER
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: Press
• End Size: 3/4 in
• Second End Type: Fitting
• Second End Size: 3/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• X: 1.02 in
• Z: 2.01 in
• Mueller Description: 3/4 FTG X P LT 90 ELL
