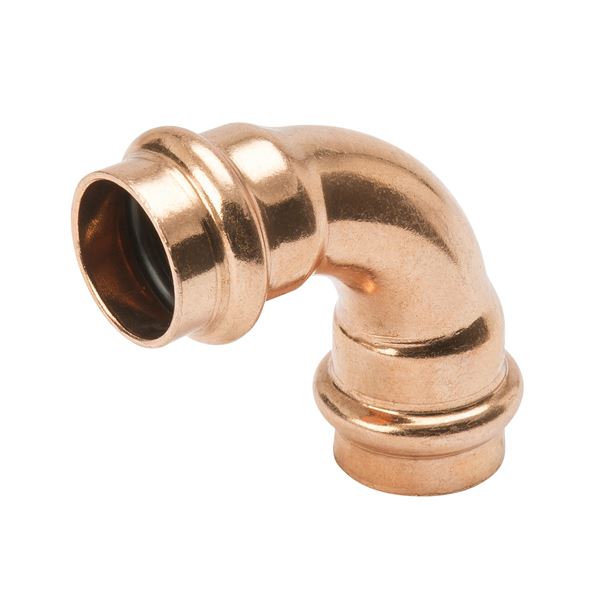

Mueller Streamline pf02072 prs 90 degree elbow long radius (p x p) sd 2 inch x 2 inch

Product Description

The MUELLER STREAMLINE PF02072 PRS 90 Degree Elbow Long Radius (P x P) SD is a copper-press fitting designed for flameless joining in plumbing and mechanical applications. This 2-inch by 2-inch elbow offers a maximum operating pressure of 300 psi and can withstand temperatures from -20 °F to 250 °F. It provides a secure, press-fit connection for efficient system installation.

• Flameless joining alternative for plumbing or mechanical applications.
• Available in sizes ranging from 1/2 inch to 4 inches in diameter.
• Constructed from durable copper, ensuring longevity and performance.

Product Highlights

Copper-press 90-degree elbow for flameless plumbing and mechanical connections, rated for 300 psi.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF02072

Technical Specifications

• Material: Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• First End Type: Press
• First End Size: 2 inch
• Second End Type: Press
• Second End Size: 2 inch
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• X Dimension: 2.52 inch
• X1 Dimension: 2.52 inch
