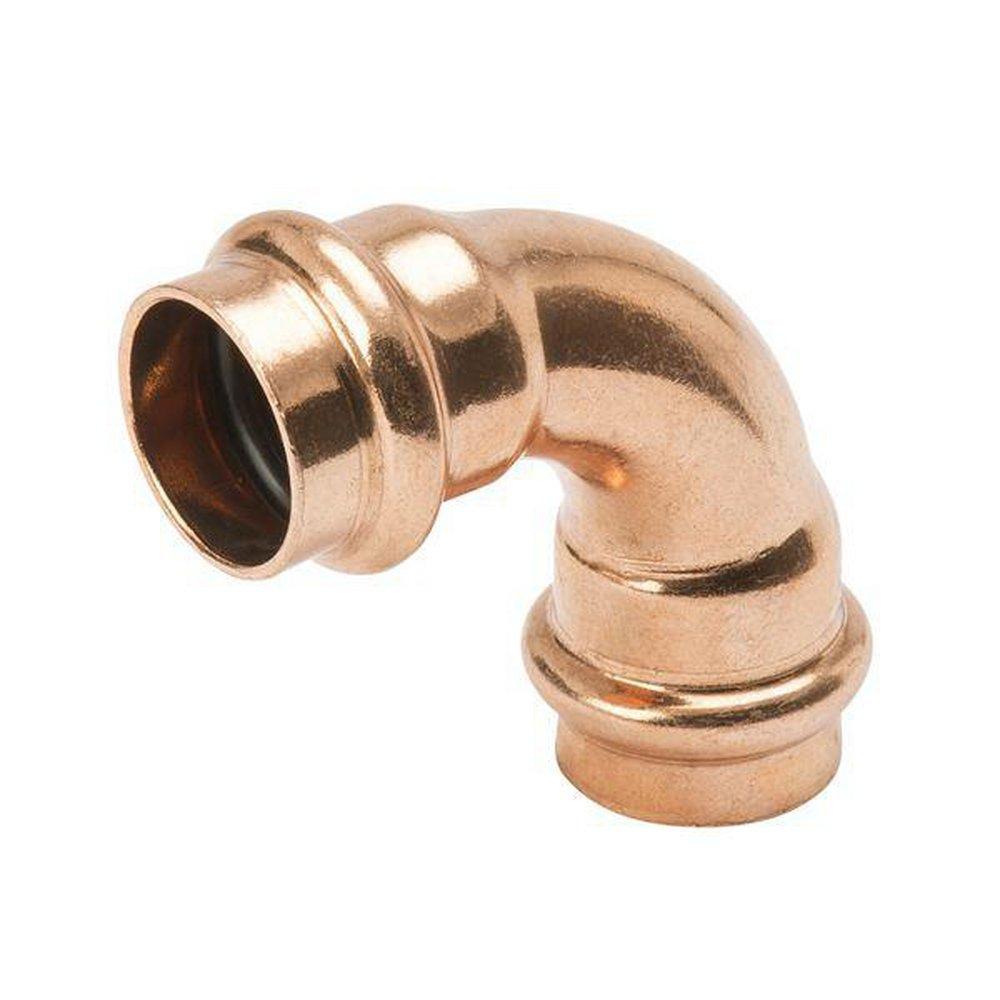

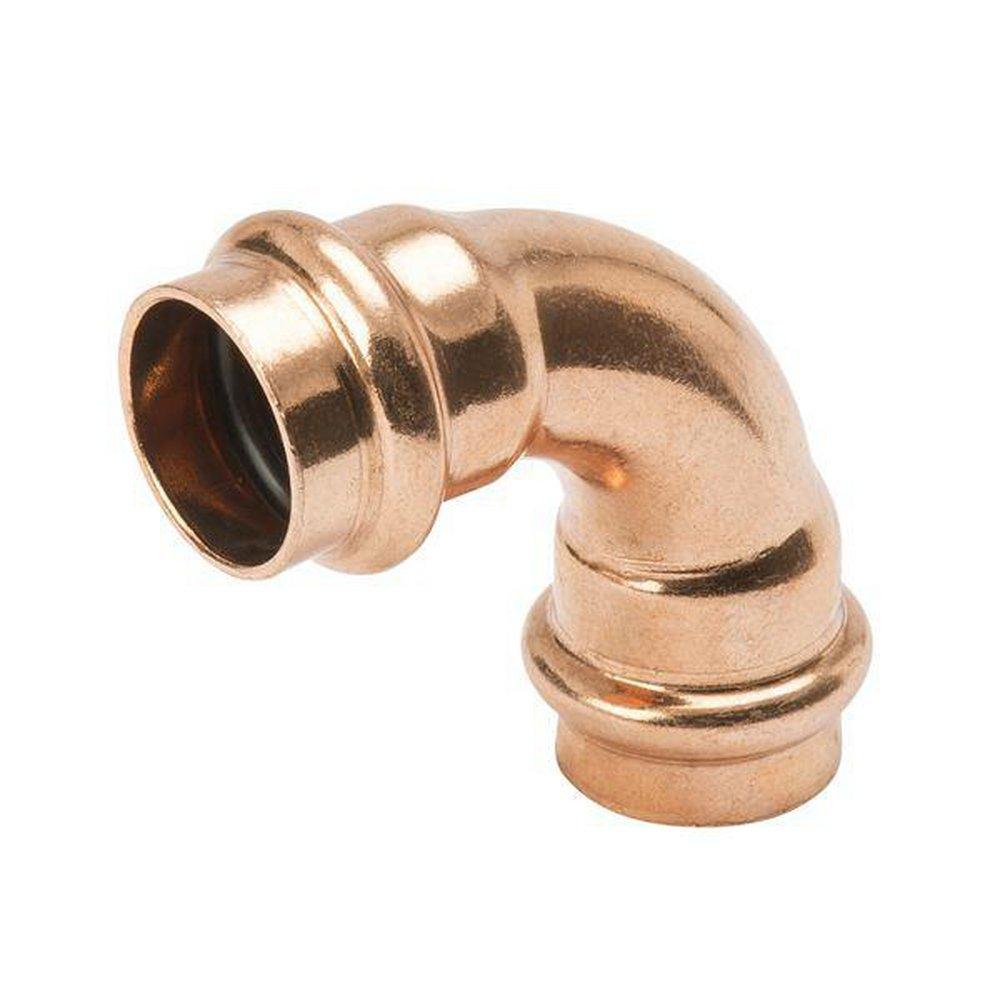

Mueller Streamline PF02063 PRS™ 90º Elbow Long Radius (P x P) SD 1-1/2 feet' x 1-1/2 feet'

Product Description

The MUELLER STREAMLINE PF02063 is a COPPER 90 Degree Long Radius Elbow, designed for plumbing and mechanical applications. This Press x Press fitting has an End Size of 1 1/2 inches and can withstand a Maximum Operating Pressure of 300 psi. It operates within a temperature range of -20 °F to 250 °F, offering a flameless joining alternative for various installations.

• Flameless joining alternative for plumbing or mechanical applications.
• Lead Law Compliant and Certified.
• NSF Certified for safety and quality.

Product Highlights

Durable copper construction with press connections for reliable, flameless installations in plumbing and mechanical systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF02063

Technical Specifications

• Material: COPPER
• Operating Temperature Range: -20 °F to 250 °F
• Maximum Operating Pressure: 300 psi
• End Type: Press
• End Size: 1 1/2 in
• Second End Type: Press
• Second End Size: 1 1/2 in
• Standards/Certifications: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13, ASTM B-88 Type K, ASTM B-88 Type L, ASTM B-88 Type M
• X Dimension: 2.01 in
• X1 Dimension: 2.01 in
• Angle: 90 Degree
• Radius: Long
• Connection: P x P
• Fitting Type: Elbow
• Material Grade: C12200
