Mueller Streamline PF01955 PRS extended no stop coupling (PxP) SD 1 feet' x 1 feet'

Product Description

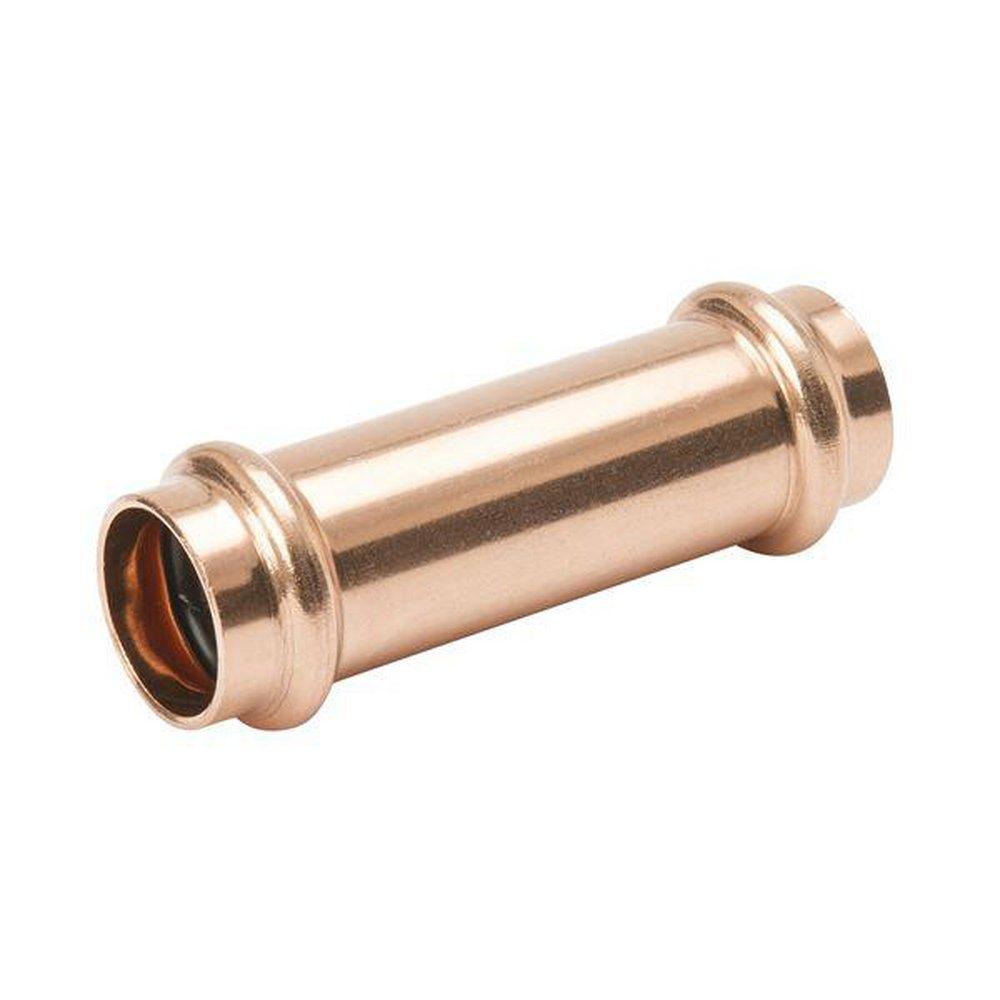

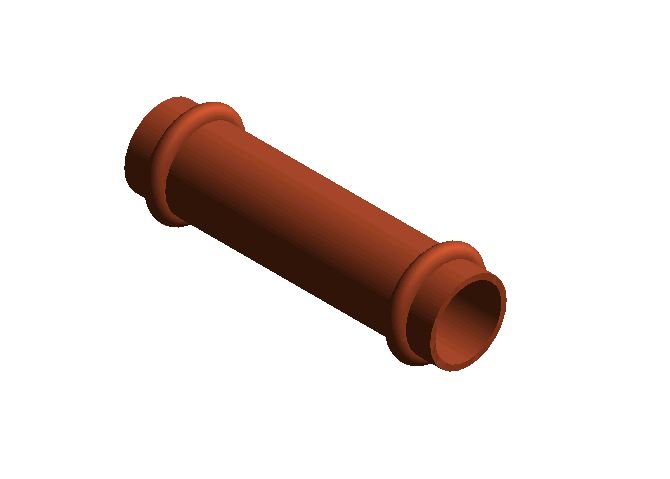

The MUELLER STREAMLINE PF01955 is a copper extended coupling designed for flameless joining in plumbing or mechanical applications. This 1'' x 1'' Press x Press (PxP) connection fitting is part of the Streamline PRS Copper-Press Fittings line, offering a reliable alternative for various pipe sizes. It operates within a temperature range of -20 °F to 250 °F and can withstand a maximum operating pressure of 300 psi, making it suitable for demanding systems.

• Flameless joining alternative for plumbing or mechanical applications
• No stop design facilitates easy pipe insertion
• Press x Press (PxP) connection for secure installation

Product Highlights

Copper extended coupling for flameless joining in plumbing and mechanical systems, featuring a 1'' x 1'' PxP connection and no stop design.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01955

Technical Specifications

• Material: COPPER
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: Press
• End Size: 1 in
• Second End Type: Press
• Second End Size: 1 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, NSF/ANSI 61-G, CSA TIL-MSE-13
• Mueller Description: 1 P X P EXT COUP NO STOP
• ASTM Standards: ASTM B-88, ASTM B-88 Type K, ASTM B-88 Type L, ASTM B-88 Type M
• Clean Bagged: No
• Collection: Streamline®
• FM Approved: No
• Fitting Type: Extended Coupling
• Lead Law Compliance Level: Lead Law Compliant and Certified
• UL Listed: No
