Mueller Streamline PF01950 PRS Extended No Stop Coupling (PxP) SD 300 PSI 1/2 feet' x 1/2 feet'

Product Description

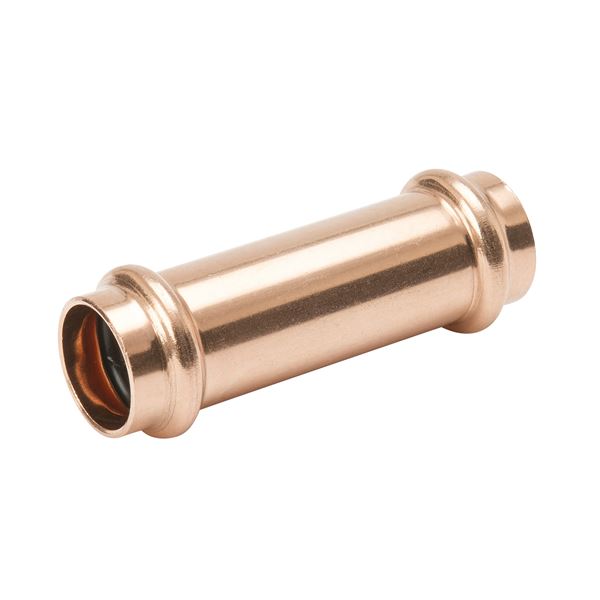

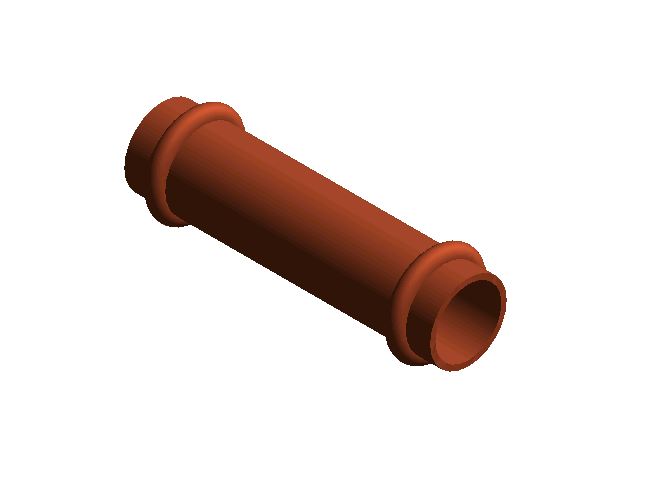

The MUELLER STREAMLINE PF01950 PRS Copper-Press Fitting is an extended no-stop coupling designed for flameless joining in plumbing or mechanical applications. Constructed from copper, this PxP coupling measures 1/2'' x 1/2'' and can withstand a maximum operating pressure of 300 psi. It operates effectively within a temperature range of -20 °F to 250 °F, ensuring reliable performance in various systems.

• Flameless joining alternative for secure connections.
• Suitable for diverse plumbing and mechanical applications.
• Features a no-stop design for extended coupling functionality.

Product Highlights

A copper PxP extended no-stop coupling for flameless plumbing and mechanical connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01950

Technical Specifications

• Weight: 0.13 lb
• Material: Copper
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: Press
• End Size: 1/2 in
• Second End Type: Press
• Second End Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 2.95 in
• Overall Height: 0.93 in
• Overall Width: 0.93 in
