Mueller Streamline PF01940 PRESS Companion Flange 4

Product Description

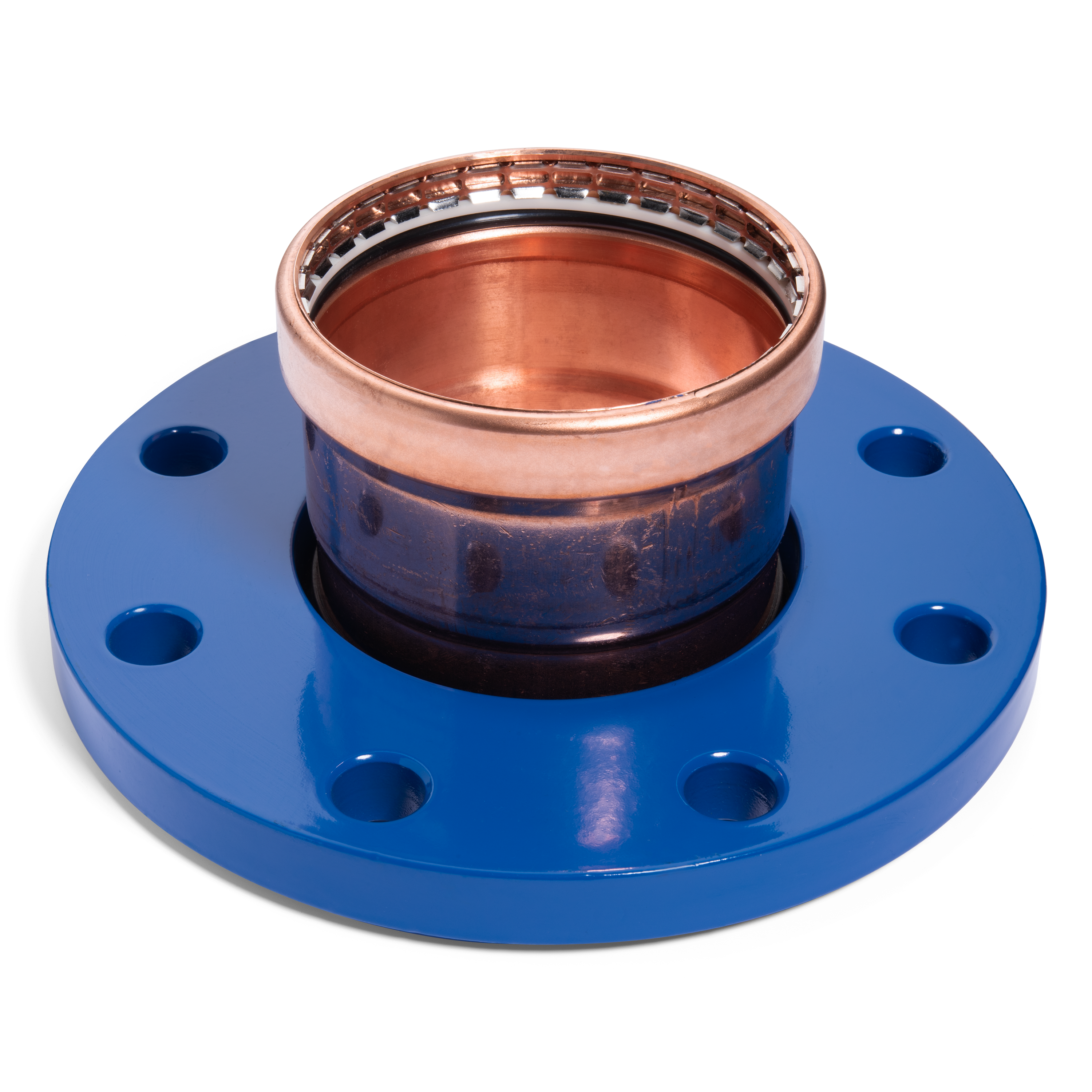

Mueller Streamline PF01940 is a four-inch press companion flange designed for multiple applications. This product features a nominal size of four inches and is built from wrot copper. Its key attributes include a pressure rating of two hundred psi and a temperature rating ranging from negative twenty to two hundred fifty degrees Fahrenheit.

• Four bolt holes for secure fastening
• Environmentally friendly design
• Compatible with various fittings and tools

Product Highlights

The Mueller Streamline PF01940 flange allows for easy installation with flameless connections, ensuring a permanent setup. It is suitable for numerous applications including potable water and hydronic heating.

Product Information

Standard Information

• Manufacturer: Mueller Streamline
• Material: Wrot Copper

Technical Specifications

• Nominal Size: 4 in
• Connection Type: Press
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 deg F
• Dimensions: 8.86 in L x 8.86 in W x 3.68 in H
• Bolt Circle Diameter: 7.28 in
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
