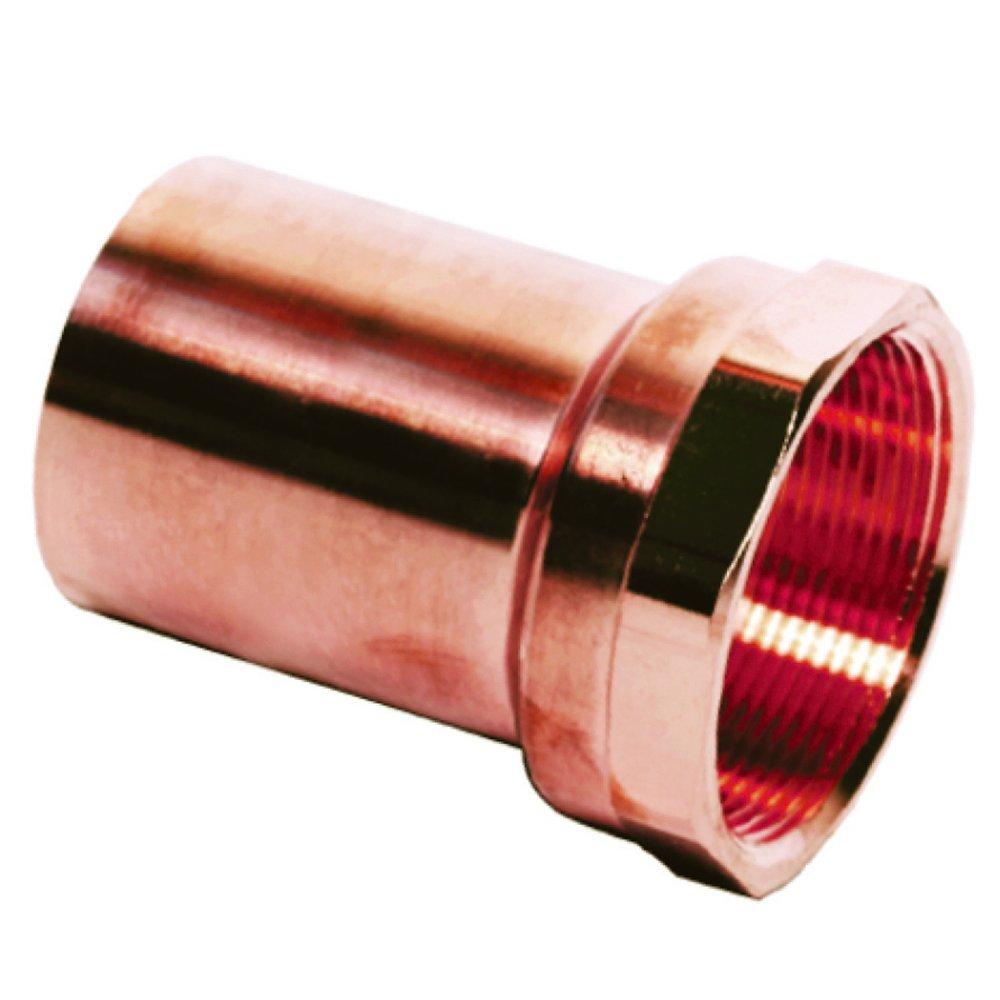

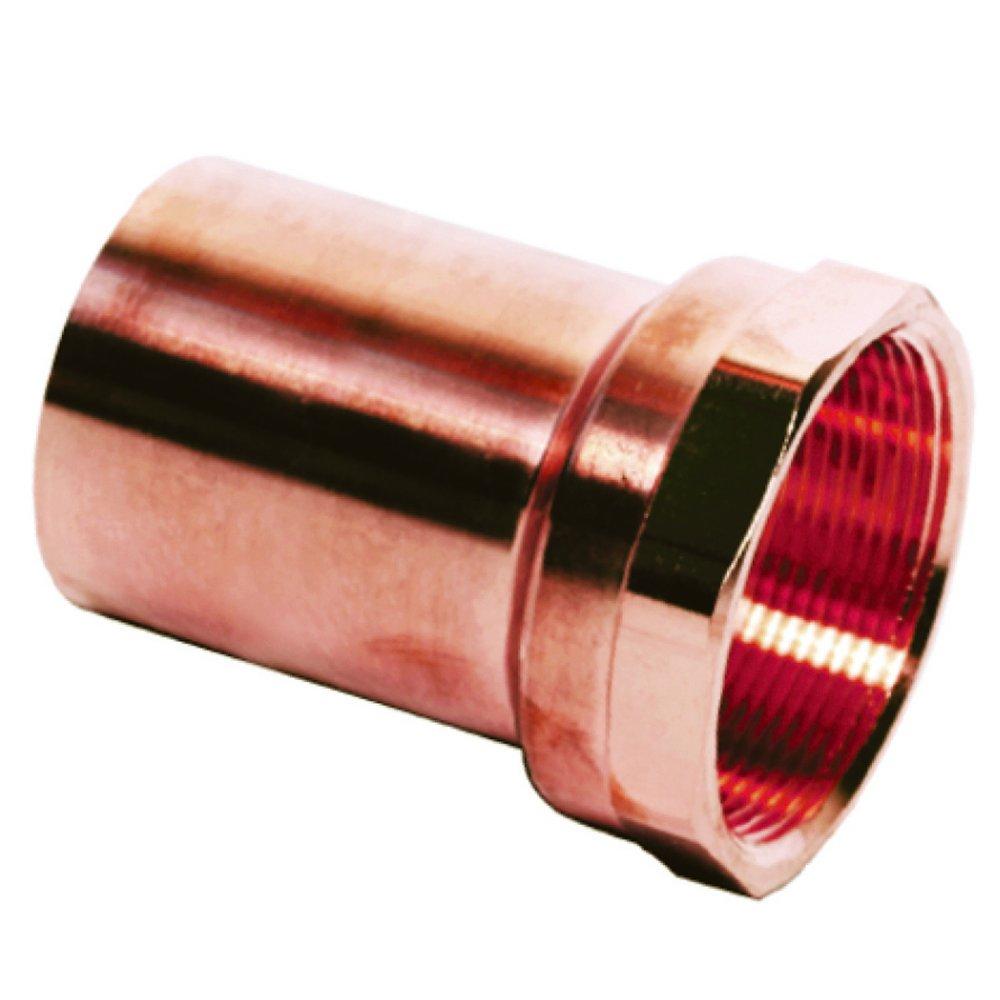

Mueller Streamline PF01579 1-1/2 in. Copper Press Street Female Adapter

Product Description

The MUELLER STREAMLINE PF01579 is a 1-1/2 inch copper press street female adapter crafted from wrot copper. Designed for plumbing and mechanical applications, this fitting is suitable for both above and below ground installations as permitted by local codes. It operates effectively within a temperature range of -20° F to 250° F and handles an operating pressure of 200 psi, with a maximum pressure rating of 300 psi. The adapter provides reliable 360° leak detection for 1/2 inch to 2 inch fittings.

• For use in plumbing or mechanical applications in above and below ground applications as allowed by local code
• Operating pressure: 200 psi
• Operating temperature range: -20° F to 250° F

Product Highlights

Lead Law Compliant wrot copper female adapter with 360° leak detection for plumbing and mechanical systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01579

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASME: ASME B16.51
• ASTM: ASTM B-88 Type K, ASTM B-88 Type L, ASTM B-88 Type M
• CSA Certified: CSA TIL MSE 13
• Clean Bagged: No
• Collection: Streamline®
• End Connection 1: Male Sweat
• End Connection 2: FPT
• End Connections: Male Sweat x FPT
• FM Approved: No
• Fitting Size 1: 1-1/2 in
• Fitting Size 2: 1-1/2 in
• Fitting Sizes: 1-1/2 in
• Fitting Type: Female Adapter
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Wrot Copper
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Maximum Pressure: 300 psi
• UL Listed: No
• Operating Pressure: 200 psi
• Operating Temperature Range: -20° F to 250° F
