Mueller Streamline PF01570 PRS Female Tee (PxPxFPT) SD 1 x 1 x 1/2 Inch

Product Description

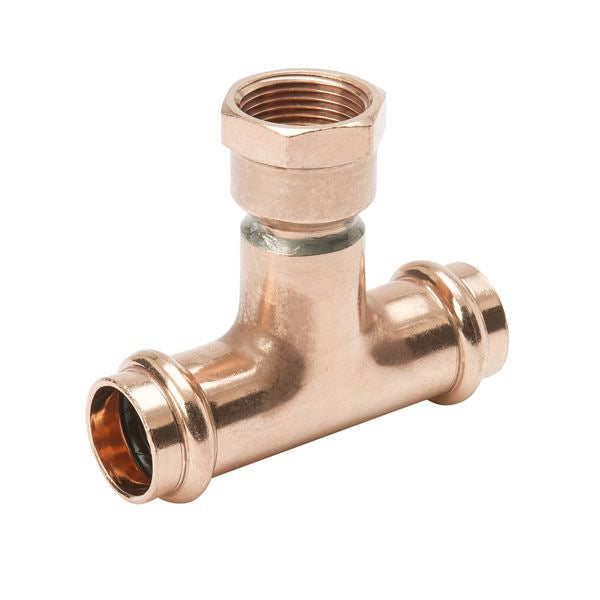

The MUELLER STREAMLINE PF01570 is a copper PRS Female Tee fitting designed for plumbing and piping systems. This tee features Press x Press x FPT connections with sizes of 1 inch x 1 inch x 1/2 inch, suitable for various residential and commercial applications. It is rated for a maximum operating pressure of 300 PSI and can withstand temperatures from -20 °F to 250 °F, ensuring durability and performance in diverse environments.

• Constructed from durable copper material for long-lasting performance and corrosion resistance.
• Features 1 inch Press ends and a 1/2 inch FNPT (Female National Pipe Taper) threaded branch for versatile connections.
• Designed to operate within a temperature range of -20 °F to 250 °F and a maximum pressure of 300 PSI.

Product Highlights

Copper tee fitting with Press and FNPT connections, ideal for plumbing installations requiring reliable flow diversion.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01570

Technical Specifications

• Material: Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Type 1: Press
• End Size 1: 1 in
• End Type 2: Press
• End Size 2: 1 in
• End Type 3: FNPT with Hex
• End Size 3: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 3.19 in
• Overall Height: 3.11 in
• Overall Width: 1.47 in
• Dimension X: 0.69 in
• Dimension L: 2.37 in
