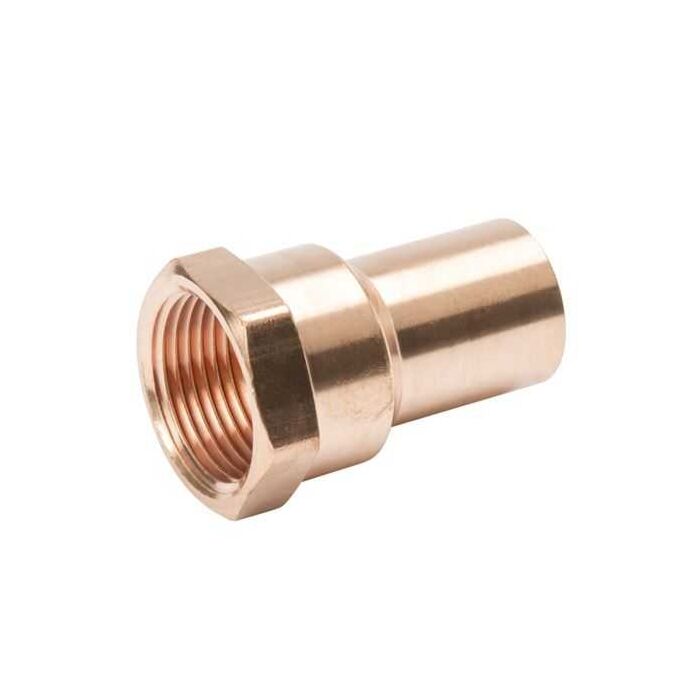

Mueller Streamline PF01564 PRS Female Fitting Adapter (FTGxFPT) SD 1 feet' x 3/4 feet'

Product Description

The MUELLER STREAMLINE PF01564 is a copper female adapter designed for plumbing applications. This PRS (Press) connection technology fitting facilitates connections between a 1-inch FTG and a 3/4-inch FPT. It operates within a temperature range of -20 °F to 250 °F and can withstand a maximum operating pressure of 300 psi, ensuring reliable performance in various systems.

• Copper construction ensures durability and corrosion resistance.
• PRS (Press) connection technology provides secure and efficient installation.
• Designed for 1 inch FTG and 3/4 inch FPT connections, offering versatile application.

Product Highlights

This female fitting adapter complies with ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13 standards.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01564

Technical Specifications

• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: FNPT
• End Size: 3/4 in
• Second End Type: Fitting
• Second End Size: 1 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Dimension A: 1.77 in
