Mueller Streamline PF01471 Mueller Streamline PRS Male Fitting Adapter (FTGxMPT) SD 1-1/4 feet' x 1-1/4 feet'

Product Description

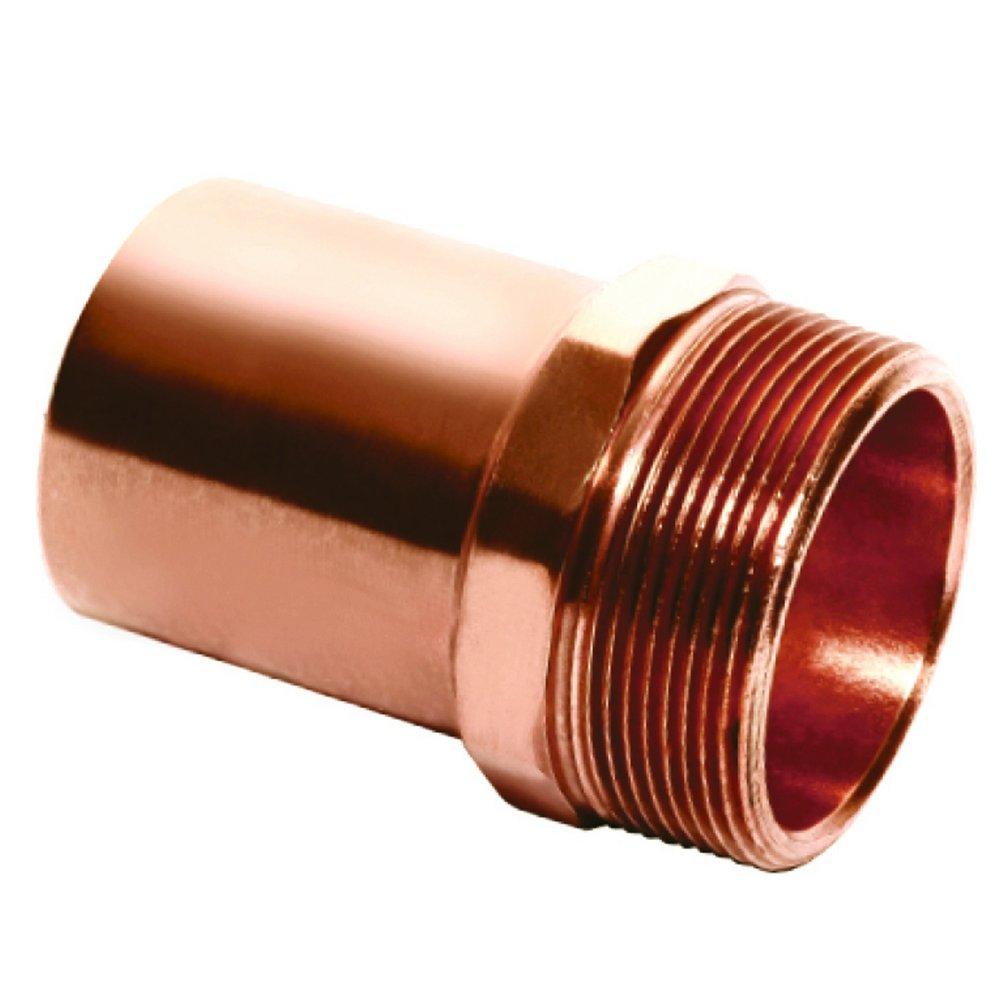

The MUELLER STREAMLINE PF01471 is a copper male adapter, featuring FTG x MPT connections with a 1-1/4'' x 1-1/4'' size. Designed for plumbing and mechanical applications, this fitting is suitable for both above and below ground installations. It operates effectively within a temperature range of -20°F to 300°F and can withstand a maximum operating pressure of 200 psi. This adapter is compatible with common pressing tools.

• Suitable for plumbing or mechanical applications in above and below ground installations as allowed by local code
• Features a maximum operating pressure of 200 psi
• Functions across an operating temperature range of -20°F to 250°F

Product Highlights

Provides reliable 360° leak detection for 1/2" to 2" fittings, regardless of orientation, and includes anti-creep protection during installation and service.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01471

Technical Specifications

• Material: Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 300 °F
• Maximum Operating Pressure: 200 psi
• Connection Type: FTG x MPT
• Connection Size: 1-1/4 in x 1-1/4 in
• Fitting Type: Male Adapter
• Length: 2.44 in
• Certifications: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
