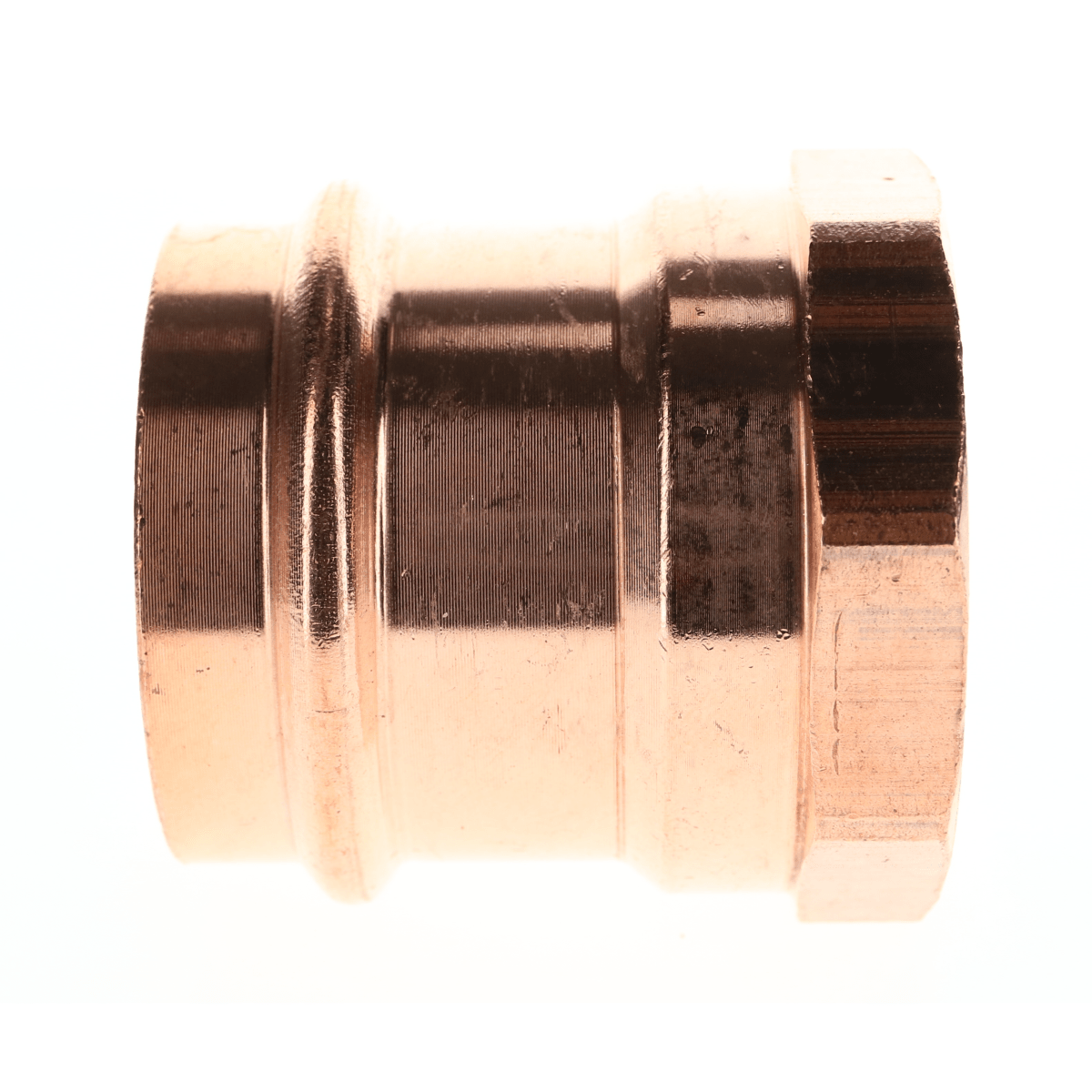

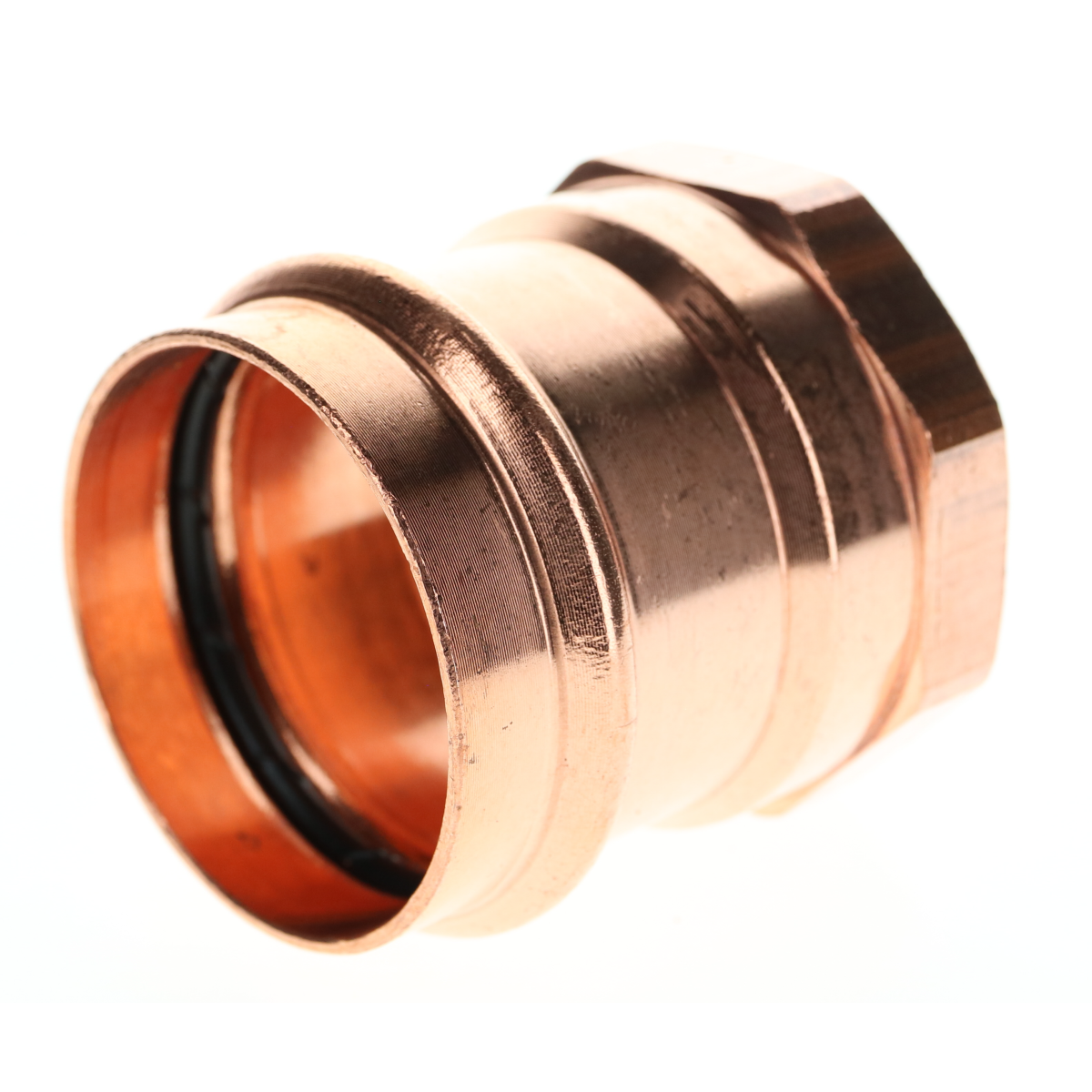

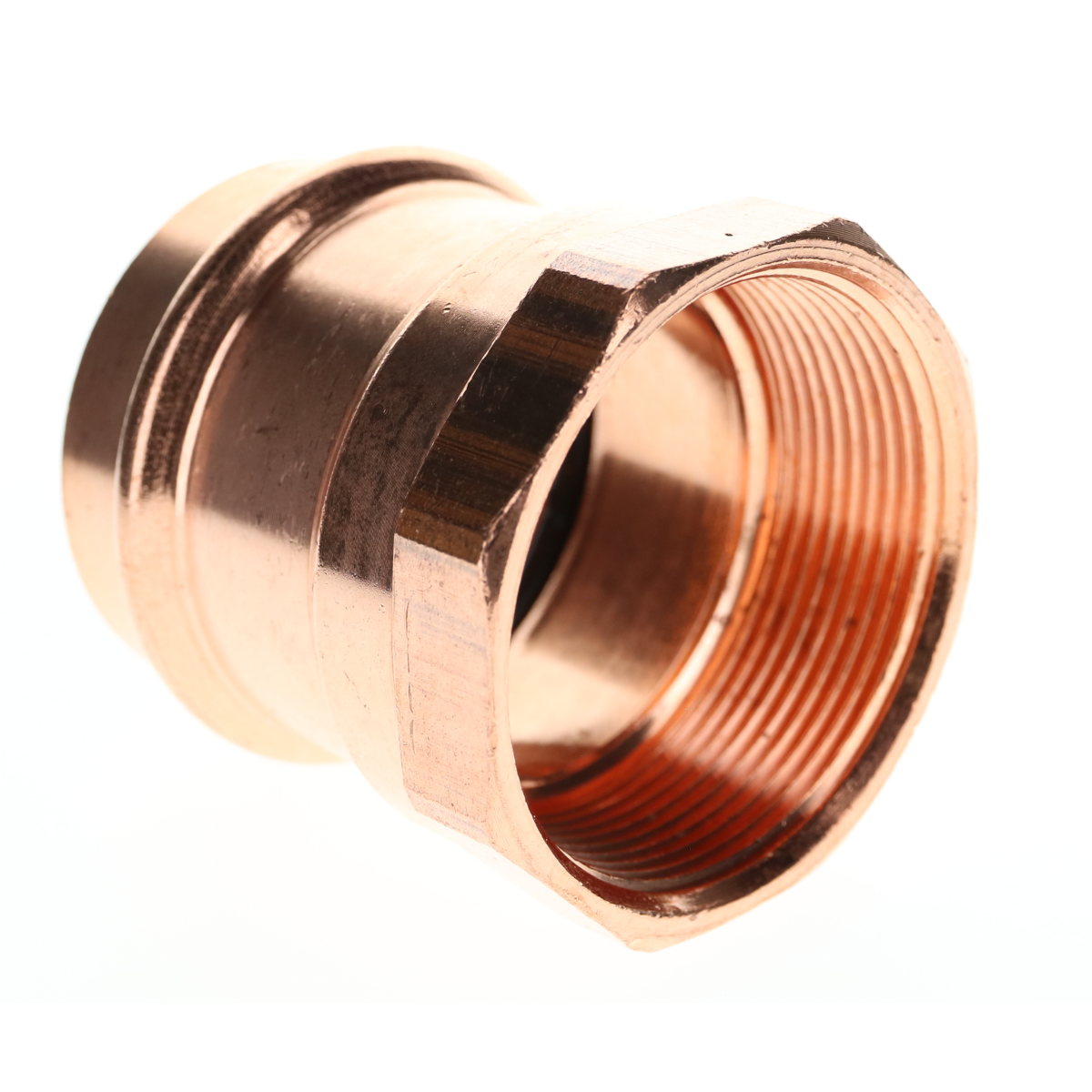

Mueller Streamline PF01297 PRESS P X FPT ADAPTER 3

Product Description

The Mueller Streamline PF01297 is a three inch press female adapter designed for reliable connections in various plumbing applications. This lead-free adapter is built from wrought copper, ensuring durability and compliance with safety standards.

• Suitable for potable water and hydronic heating
• Rated for a maximum pressure of 200 psi
• Wide operational temperature range from -20 to 250 degrees Fahrenheit

Product Highlights

This fitting allows for easy installation with a flameless connection method, reducing installation time and improving efficiency.

Product Information

Standard Information

• Brand: Mueller Streamline
• MPN: PF01297

Technical Specifications

• Type: Adapter
• End Style: Press x FNPT
• Nominal Size: 3 inches
• Pressure Rating: 200 psi
• Temperature Rating: -20 to 250 degrees Fahrenheit
• Dimensions: 3.39 inches (L) x 3.69 inches (W) x 3.69 inches (H)
• Material: Wrought Copper
• Applications: Potable Water, Hydronic Heating, Compressed Air, Non-Medical Gases, Low Pressure Steam, Mechanical Systems, Residential and Commercial Plumbing
