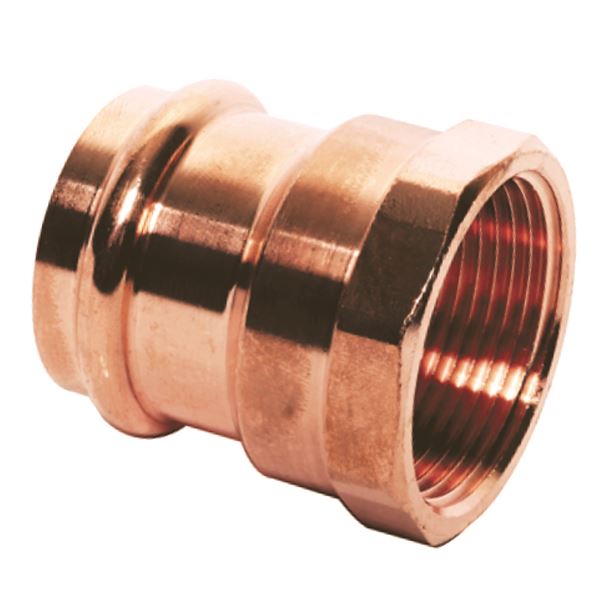

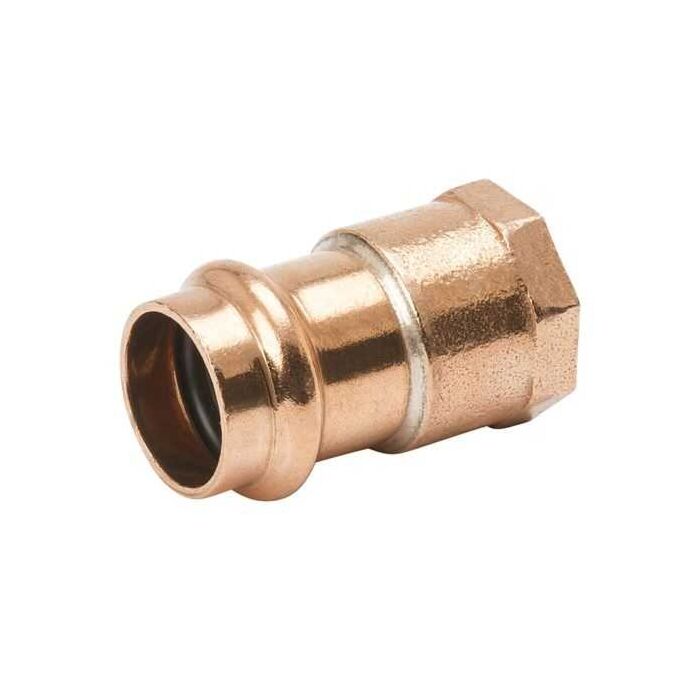

Mueller Streamline PF01270 Female Reducing Adapter (PxFPT) SD 1-1/4 feet' x 1-1/2 feet'

Product Description

The MUELLER STREAMLINE PF01270 Female Reducing Adapter (PxFPT) SD is a copper-press fitting designed for flameless joining in plumbing or mechanical applications. This adapter, with a 1-1/4'' x 1-1/2'' size, offers a maximum operating pressure of 300 psi and operates within a temperature range of -20 °F to 250 °F. It is constructed from lead-free material, ensuring compliance with various industry standards.

• Flameless joining alternative for plumbing or mechanical applications.
• Constructed from lead-free material, ensuring safety and compliance.
• Withstands operating temperatures from -20 °F to 250 °F and up to 300 psi pressure.

Product Highlights

This adapter meets multiple industry standards including ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01270

Technical Specifications

• Material: Lead-Free Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Type: FNPT
• End Size: 1 1/2 in
• Second End Type: Press
• Second End Size: 1 1/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• A: 1.56 in
• Connection Type: P x FPT
