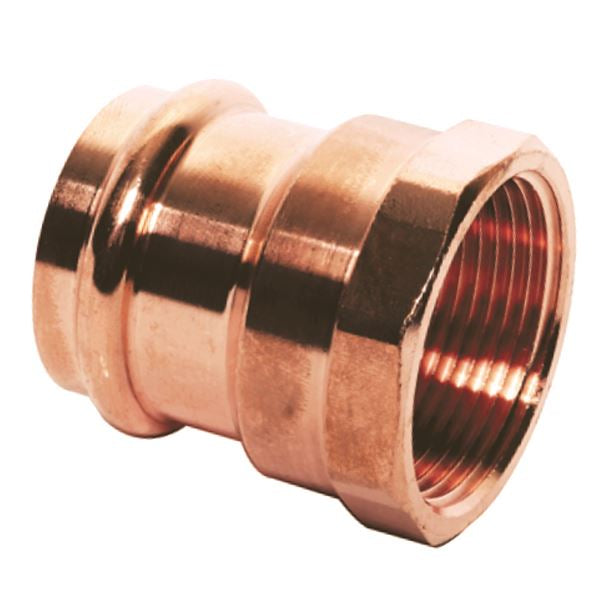

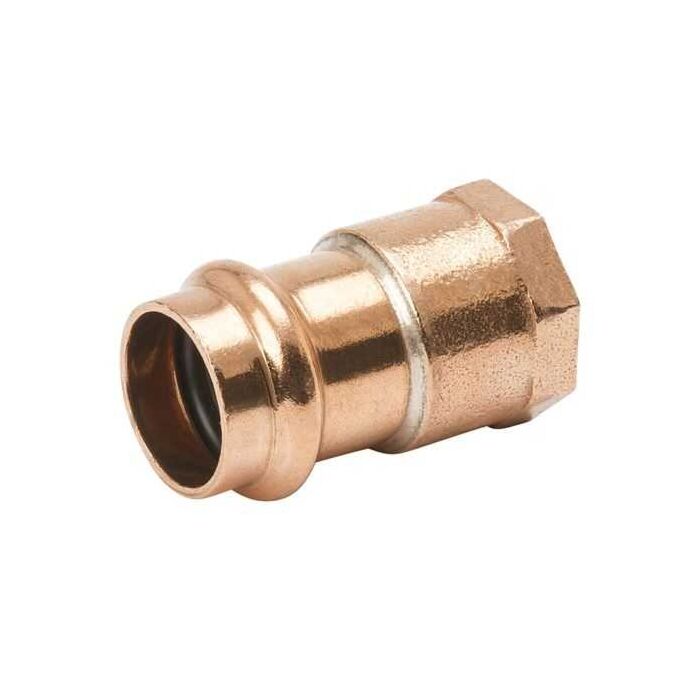

Mueller Streamline PF01265 PRS Female Reducing Adapter (PxFPT) SD 1 x 1/2

Product Description

The MUELLER STREAMLINE PF01265 is a PRS Copper-Press Female Reducing Adapter, designed for flameless joining in plumbing and mechanical applications. This lead-free adapter features a 1 inch Press end and a 1/2 inch FNPT end, accommodating systems with an operating temperature range of -20 °F to 250 °F and a maximum pressure of 300 psi. It meets standards such as ASME B16.51 and NSF/ANSI 61, ensuring reliable performance.

• Flameless joining alternative for plumbing or mechanical applications.
• Available in sizes ranging from 1/2” to 4” in diameter.
• P x FPT connection type.

Product Highlights

Flameless copper-press fitting for plumbing and mechanical systems, offering a secure and efficient connection.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01265

Technical Specifications

• Material: Lead-Free
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: FNPT
• End Size: 1/2 in
• Second End Type: Press
• Second End Size: 1 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• A: 0.73 in
• Item: Adapter
