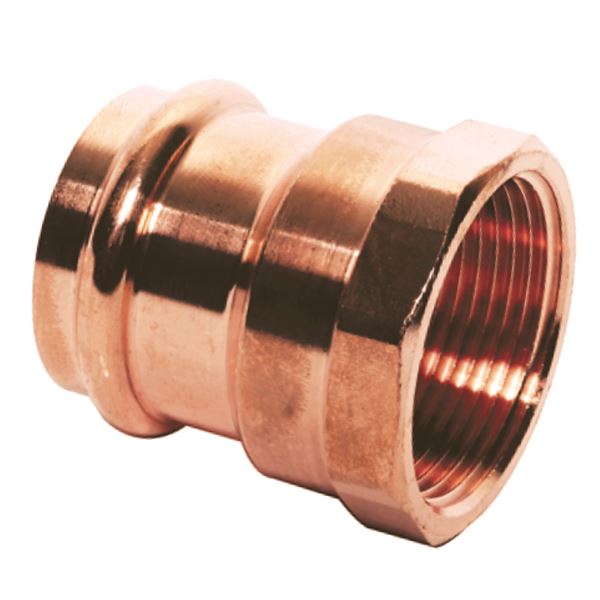

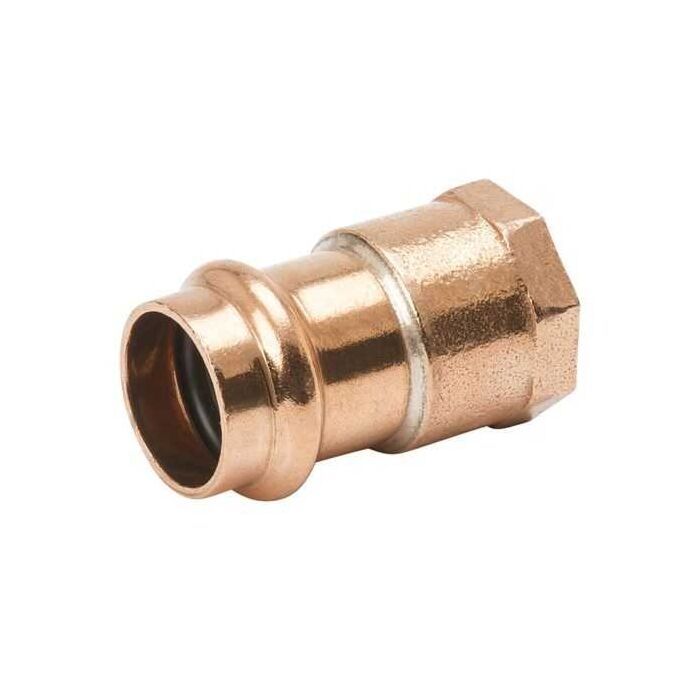

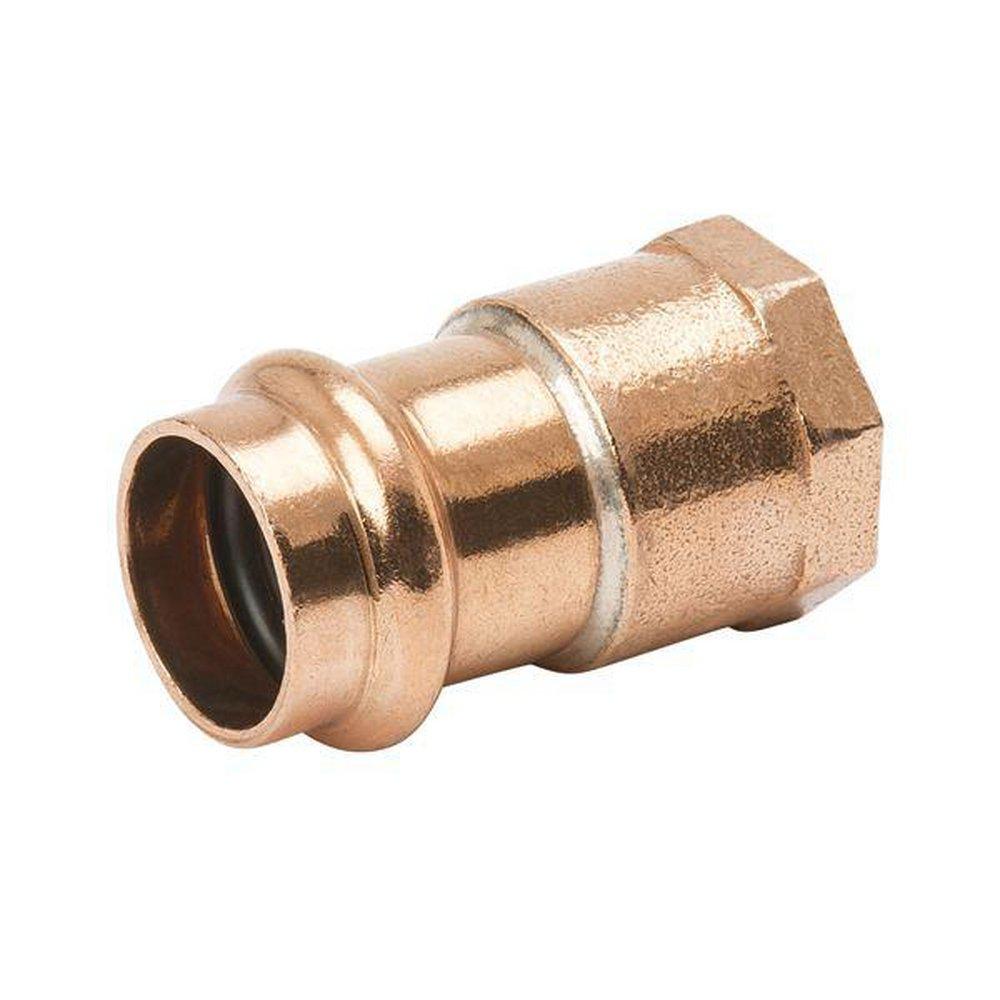

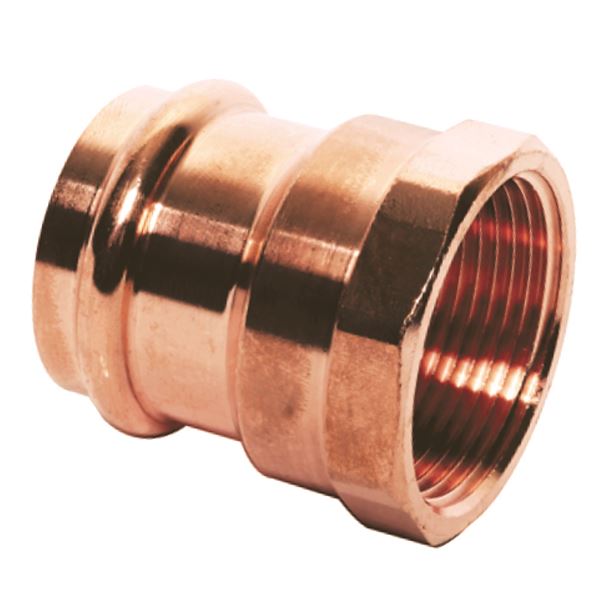

Mueller Streamline PF01264 PRS Female Reducing Adapter (PxFPT) SD 1 x 3/4

Product Description

The MUELLER STREAMLINE PF01264 PRS™ Copper-Press Female Reducing Adapter (PxFPT) SD is designed for plumbing and mechanical applications, offering a flameless joining alternative. This copper adapter, with a 1'' Press end and a 3/4'' FPT end, ensures secure connections. It is constructed from lead-free material, making it suitable for various installations requiring compliance with industry standards.

• Flameless joining alternative for plumbing or mechanical applications.
• Constructed from lead-free material.
• Conforms to ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13 standards.

Product Highlights

Lead-free copper-press female reducing adapter for flameless plumbing and mechanical connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01264
• Country of Origin: Domestic

Technical Specifications

• Material: Wrot Copper
• Lead-Free: Yes
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Connection 1 Type: Press
• End Connection 1 Size: 1 in
• End Connection 2 Type: FPT
• End Connection 2 Size: 3/4 in
• Fitting Type: Female Adapter
• Dimension A: 0.71 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• ASTM Standards: ASTM B-88 Type K, ASTM B-88 Type L, ASTM B-88 Type M
• Seal Material: EPDM
• Pressure Class: 700#
• UPC: 685768394563
• Manufacturer: Mueller Industries (Streamline)
• Clean Bagged: No
• Collection: Streamline
• FM Approved: No
• UL Listed: No
• Origin: Domestic
