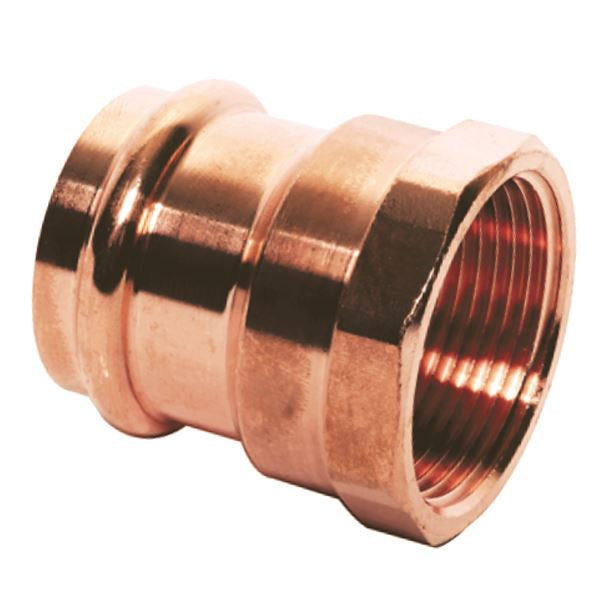

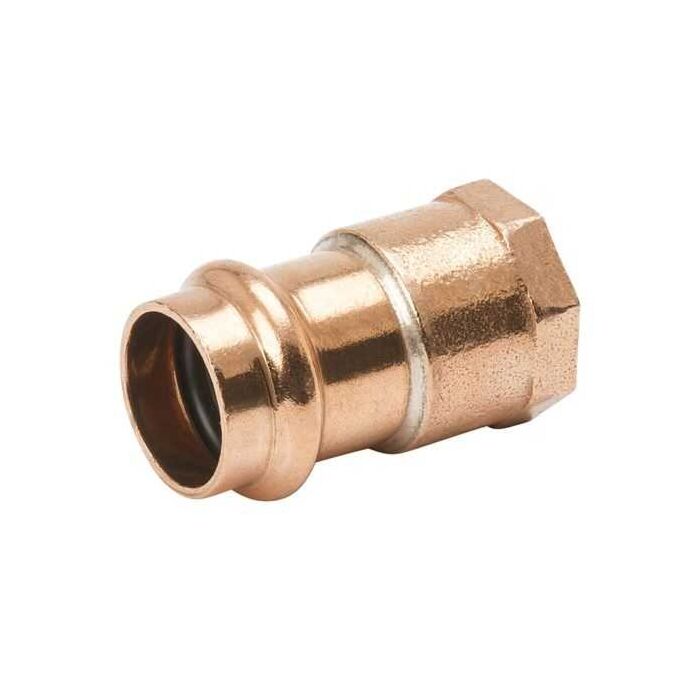

Mueller Streamline PF01261 prs female reducing adapter (pxfpt) sd 300 psi 1 feet' x 1-1/4 feet'

Product Description

The MUELLER STREAMLINE PF01261 PRS Female Reducing Adapter is a copper-press fitting designed for flameless joining in plumbing or mechanical applications. This adapter features a P x FPT connection type, suitable for hydraulic systems, and is constructed from lead-free copper material. It operates within a temperature range of -20 °F to 250 °F and can withstand a maximum pressure of 300 psi. The adapter measures 1 inch by 1-1/4 inches.

• Flameless joining alternative for plumbing or mechanical applications.
• Constructed from lead-free copper material.
• Withstands operating temperatures from -20 °F to 250 °F and a maximum pressure of 300 psi.

Product Highlights

Flameless copper-press fitting for plumbing and mechanical systems, featuring a P x FPT connection and lead-free construction.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01261

Technical Specifications

• Weight: 0.48 lb
• Material: Lead-Free Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End 1 Type: Press
• End 1 Size: 1 in
• End 2 Type: FNPT
• End 2 Size: 1 1/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 2.34 in
• Overall Height: 1.44 in
• Overall Width: 1.44 in
