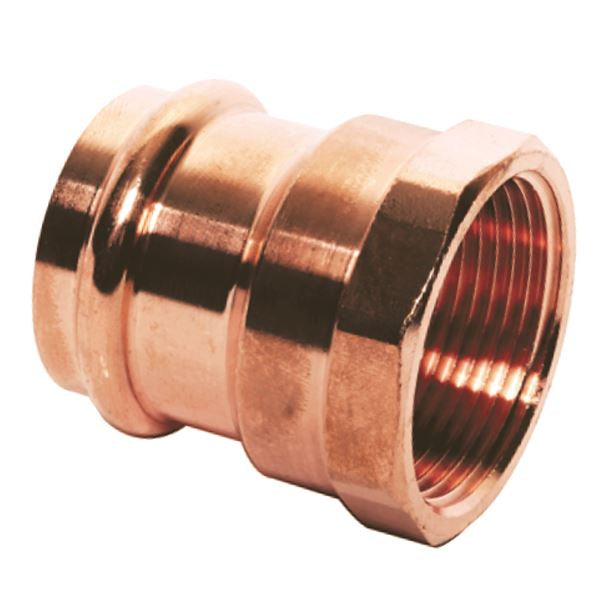

Mueller Streamline PF01247 PRS Female Reducing Adapter (PxFPT) SD 3/4 x 1/2 Inch Size

Product Description

The MUELLER STREAMLINE PF01247 PRS Female Reducing Adapter is a copper-press fitting designed for flameless joining in plumbing and mechanical applications. This adapter features a P x FPT connection with a 3/4 inch press end and a 1/2 inch FNPT end, capable of handling up to 300 PSI maximum operating pressure. It is constructed from lead-free copper, ensuring durability and compliance with ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, and CSA TIL-MSE-13 standards.

• Flameless joining alternative for plumbing or mechanical applications.
• P x FPT connection type with 3/4 inch press and 1/2 inch FNPT ends.
• Constructed from lead-free copper, rated for 300 PSI maximum operating pressure.

Product Highlights

This copper-press reducing adapter offers a flameless solution for connecting copper tubing in plumbing and mechanical systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01247
• Country of Origin: South Korea

Technical Specifications

• Material: Lead-Free Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• First End Type: FNPT
• First End Size: 1/2 in
• Second End Type: Press
• Second End Size: 3/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Dimension A: 0.71 in
