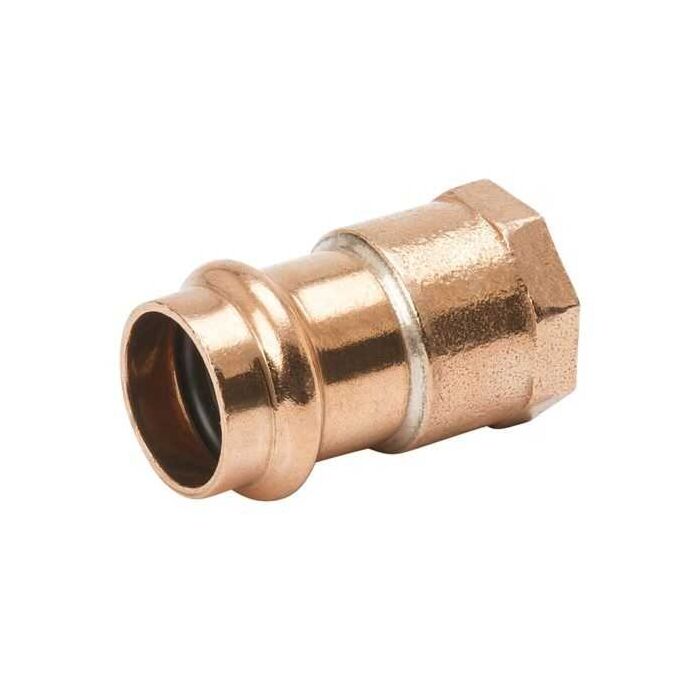

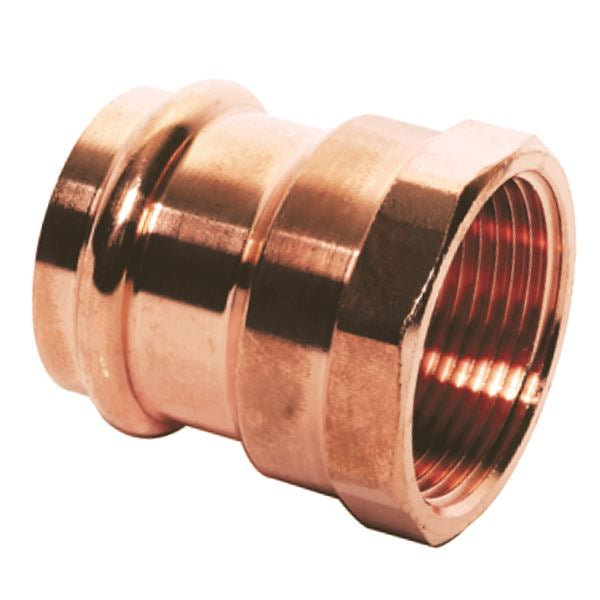

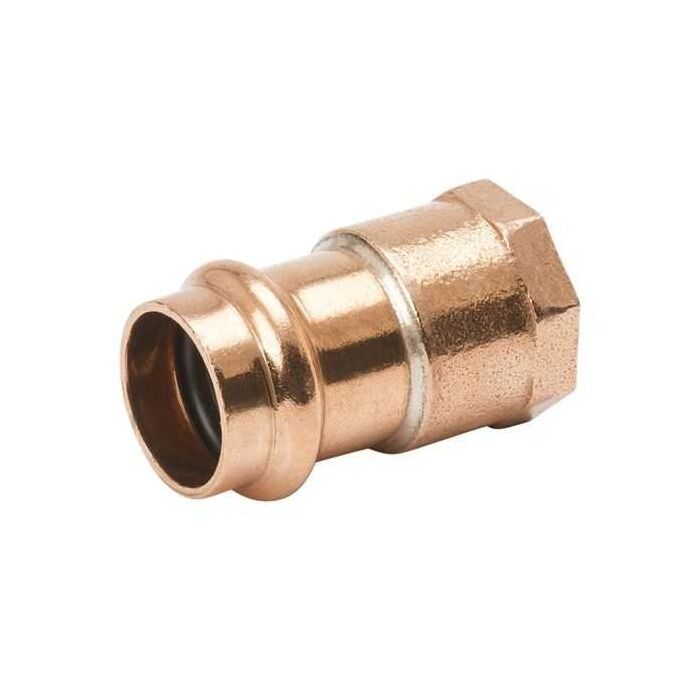

Mueller Streamline PF01232 PRS™ Female Reducing Adapter (PxFPT) SD 1/2 feet' x 3/8 feet'

Product Description

The MUELLER STREAMLINE PF01232 PRS™ Female Reducing Adapter (PxFPT) SD is a lead-free copper fitting designed for flameless joining in plumbing or mechanical applications. This adapter features a 1/2 inch Press (P) end and a 3/8 inch Female Pipe Thread (FPT) end, facilitating connections between different pipe sizes. It operates within a temperature range of -20 °F to 250 °F and can withstand a maximum operating pressure of 300 psi.

• Flameless joining alternative for plumbing or mechanical applications
• Available in sizes ranging from 1/2” to 4” in diameter within the product line
• Constructed from lead-free material

Product Highlights

Lead-free copper reducing adapter for flameless plumbing and mechanical connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01232

Technical Specifications

• Material: Lead-Free Copper
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• First End Type: FNPT
• First End Size: 3/8 inch
• Second End Type: Press
• Second End Size: 1/2 inch
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Dimension A: 0.53 inch
• Type: Adapter, P x FPT
• Height: 1.45 inches
• Length: 3.25 inches
• Width: 1.45 inches
