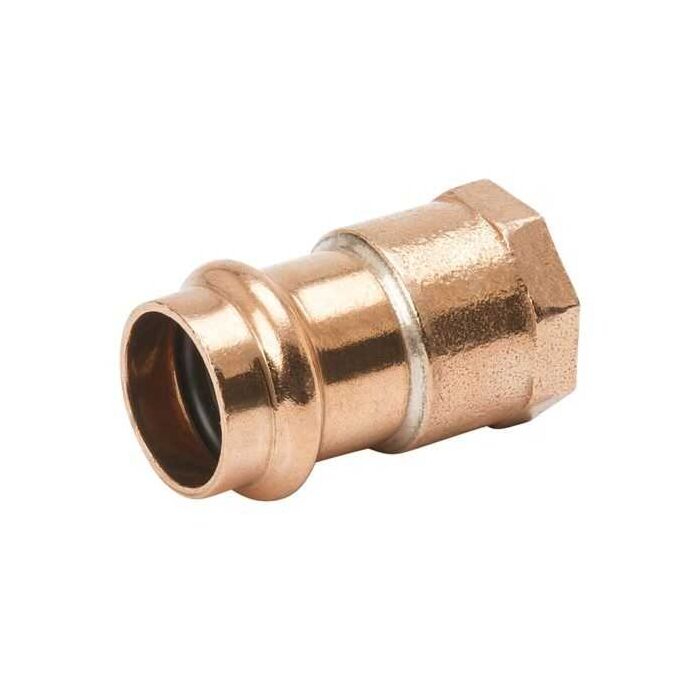

Mueller Streamline PF01230 prs female reducing adapter (pxfpt) sd 1/2 x 3/4

Product Description

The MUELLER STREAMLINE PF01230 is a copper female reducing adapter designed for plumbing and mechanical applications. This PRS™ Copper-Press fitting offers a flameless joining alternative, suitable for various installations. It features a 1/2 inch press end and a 3/4 inch FNPT end, accommodating different pipe connections. The adapter is lead-free and can withstand operating temperatures from -20 °F to 250 °F and pressures up to 300 psi.

• Flameless joining alternative for plumbing or mechanical applications.
• Available in sizes ranging from 1/2” to 4” in diameter.
• LEAD FREE construction ensures safety and compliance.

Product Highlights

This copper-press female reducing adapter provides a secure, flameless connection for plumbing systems, featuring lead-free material and robust pressure/temperature ratings.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01230

Technical Specifications

• Material: LEAD FREE
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Type: FNPT
• End Size: 3/4 in
• Second End Type: Press
• Second End Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Dimension A: 1.02 in
