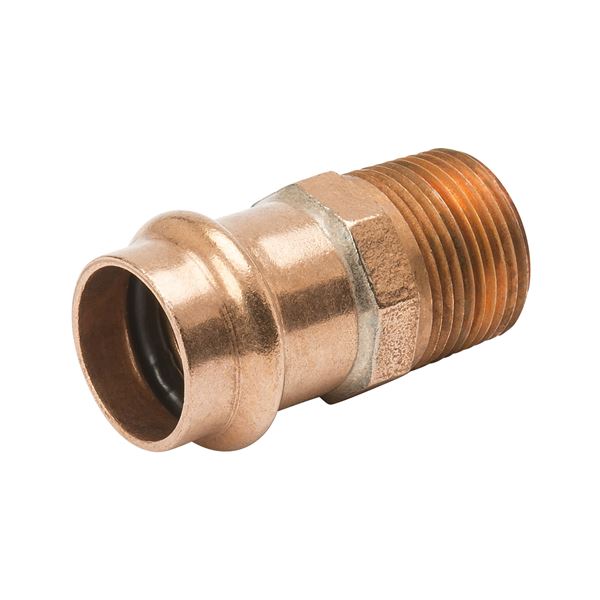

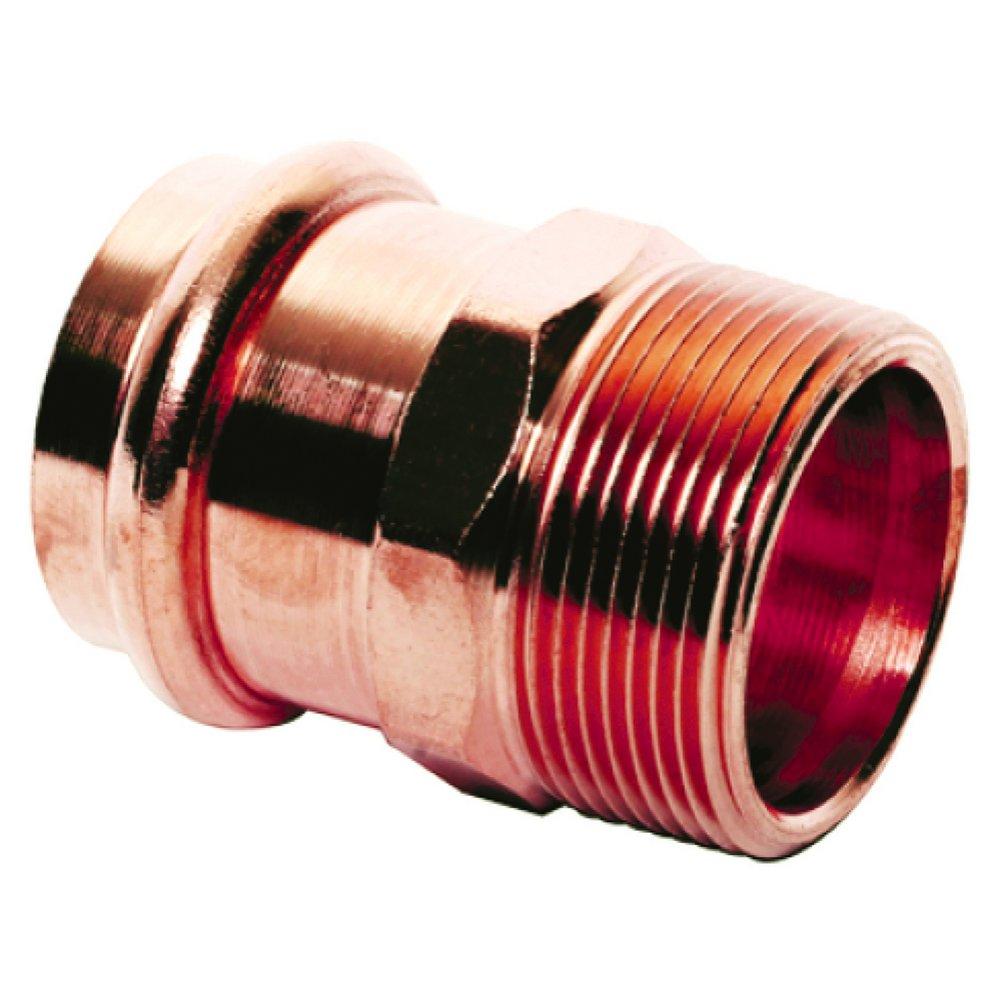

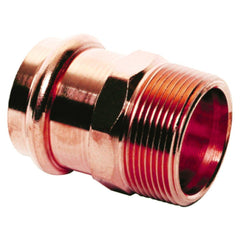

Mueller Streamline pf01178 prs male reducing adapter (pxmpt) sd 1-1/2 feet' x 2 feet'

Product Description

The MUELLER STREAMLINE PF01178 PRS™ Male Reducing Adapter is a lead-free wrot copper-press fitting designed for flameless joining in plumbing and mechanical applications. This adapter features a 1-1/2 inch Press end and a 2 inch MNPT end, operating efficiently within a temperature range of -20 °F to 250 °F and a maximum pressure of 300 psi. It complies with ASME B16.51, NSF/ANSI 61, and NSF/ANSI 372 standards, ensuring reliable performance.

• Flameless joining alternative for plumbing or mechanical applications.
• Constructed from lead-free wrot copper, meeting Lead Law Compliant and Certified standards.
• Designed for a maximum operating pressure of 300 psi and temperatures from -20 °F to 250 °F.

Product Highlights

Lead-free copper-press male reducing adapter for secure, flameless plumbing and mechanical connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01178

Technical Specifications

• Weight: 1.00 lb
• Material: Lead Free Wrot Copper
• Operating Temperature Min: -20 °F
• Operating Temperature Max: 250 °F
• Operating Pressure Max: 300 psi
• End Connection 1 Type: Press
• End Connection 1 Size: 1 1/2 in
• End Connection 2 Type: MNPT
• End Connection 2 Size: 2 in
• Certifications: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13, ASTM B-88
• A: 1.75 in
• Fitting Type: Male Adapter
