Mueller Streamline PF01172 PRS Male Reducing Adapter (PxMPT) SD 300 PSI 1-1/4 x 1 inch

Product Description

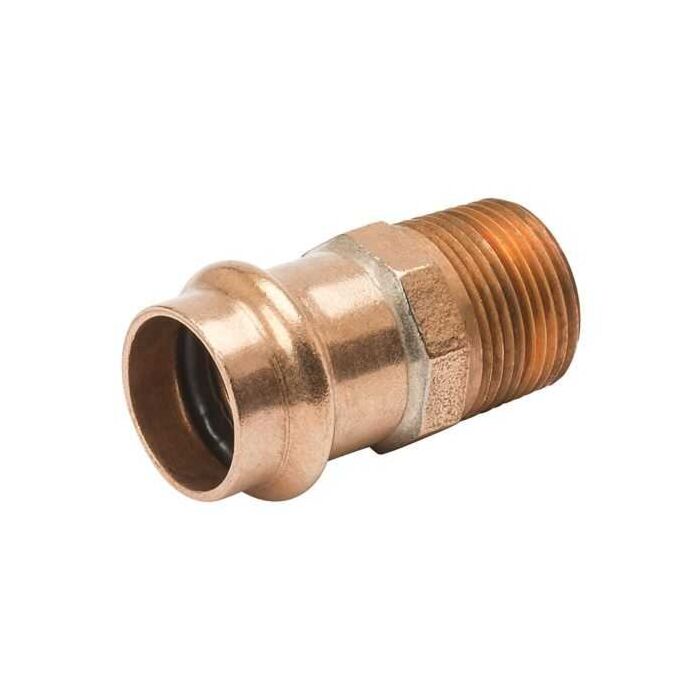

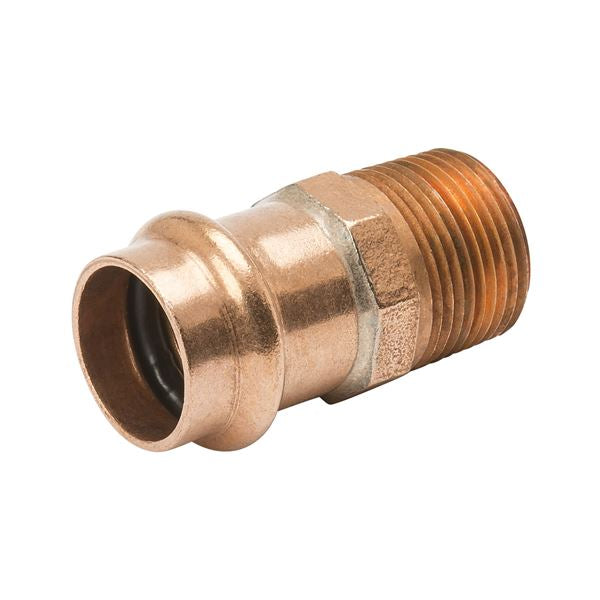

The MUELLER STREAMLINE PF01172 PRS Male Reducing Adapter is a copper P x MPT fitting, measuring 1-1/4'' x 1''. This lead-free adapter provides a flameless joining alternative for plumbing and mechanical applications, suitable for systems with an operating pressure up to 300 psi. It is designed for press connections and meets multiple industry standards including ASME B16.51 and NSF/ANSI 61.

• Flameless joining alternative for secure connections.
• Constructed from lead-free copper for safety and durability.
• Designed for plumbing and mechanical applications with a press connection.

Product Highlights

Copper P x MPT reducing adapter for flameless plumbing and mechanical connections.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01172

Technical Specifications

• Material: Lead-Free Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• First End Type: Press
• First End Size: 1 1/4 inch
• Second End Type: MNPT
• Second End Size: 1 inch
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Dimension A: 1.10 inch
