Mueller Streamline PF01170 prs male reducing adapter (pxmpt) sd 1-1/4 x 1-1/2 inch

Product Description

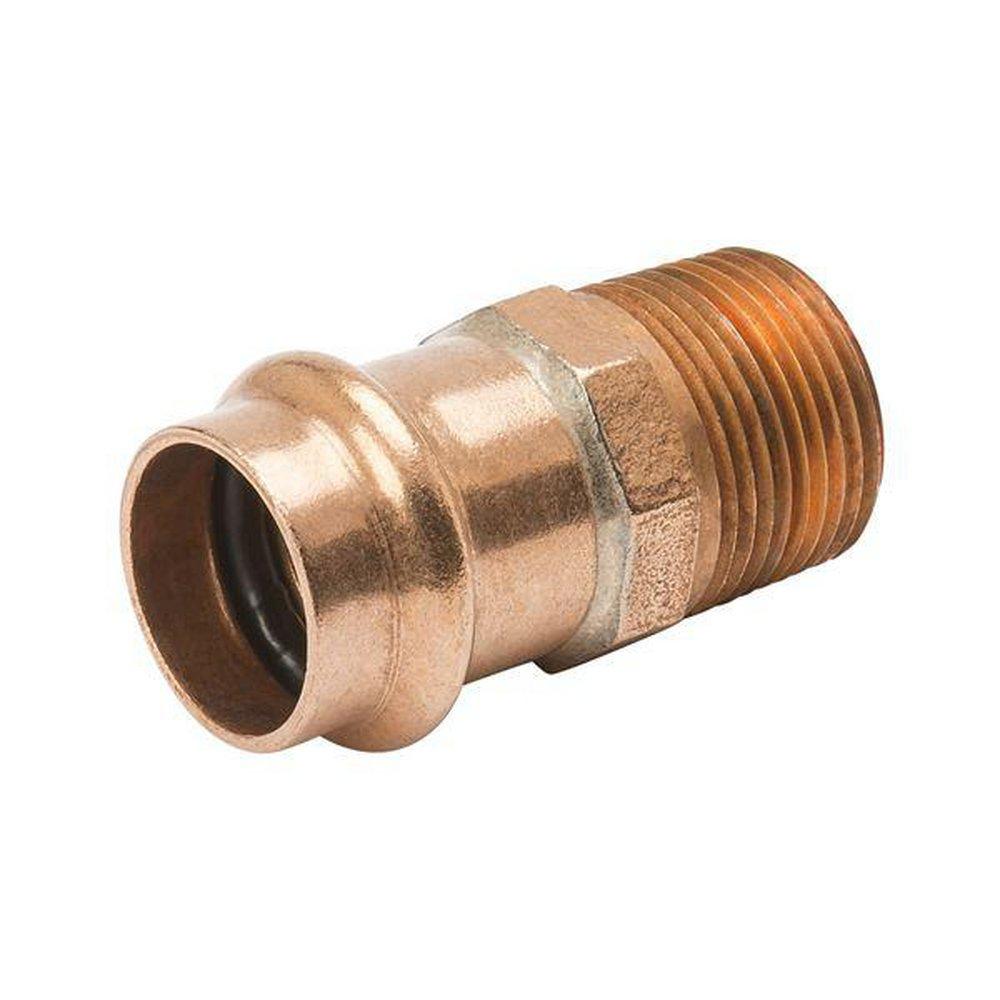

The MUELLER STREAMLINE PF01170 PRS Male Reducing Adapter is a lead-free copper fitting designed for plumbing and mechanical applications. This P x MPT adapter connects 1-1/4 inch press ends to 1-1/2 inch male NPT ends, offering a flameless joining alternative. It operates within a temperature range of -20 °F to 250 °F and can withstand a maximum operating pressure of 300 psi.

• Lead-free copper construction ensures durability and compliance.
• Features P x MPT connections with 1-1/4 inch press and 1-1/2 inch male NPT ends.
• Designed for flameless joining in plumbing and mechanical systems.

Product Highlights

Lead-free copper adapter for press to male NPT connections, rated for 300 psi.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01170

Technical Specifications

• Weight: 0.65 lb
• Material: Lead Free Wrot Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Connection Type 1: Press
• End Connection Type 2: MNPT
• Fitting Size 1: 1-1/4 in
• Fitting Size 2: 1-1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 2.46 in
• Overall Height: 1.93 in
• Overall Width: 1.93 in
• Fitting Type: Male Adapter
• FM Approved: No
• IAPMO Listed: Yes
• NSF Certified: Yes
• UL Listed: No
