Mueller Streamline PF01164 PRS Male Reducing Adapter (PxMPT) 1 x 3/4

Product Description

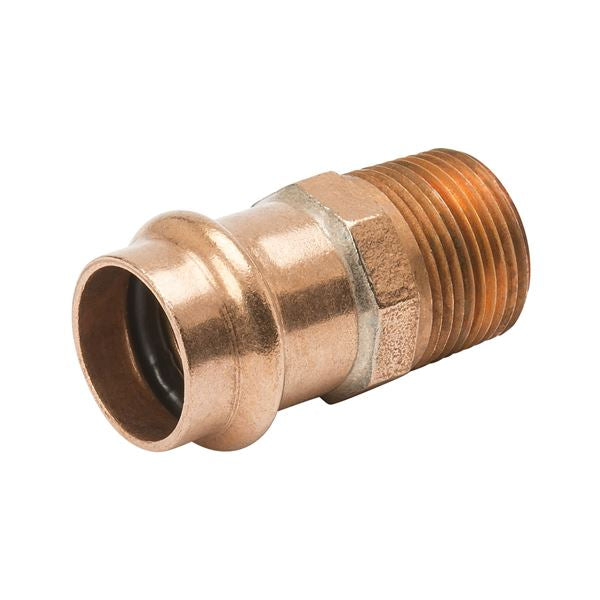

The MUELLER STREAMLINE PF01164 PRS Male Reducing Adapter (PxMPT) is a lead-free copper fitting designed for flameless joining in plumbing or mechanical applications. This adapter features a 1 inch Press end and a 3/4 inch MNPT end, suitable for systems operating between -20 ºF and 250 ºF with a maximum pressure of 300 psi. It is part of the Streamline PRS Copper-Press Fittings line.

• Flameless joining alternative for secure connections.
• Suitable for plumbing and mechanical applications.
• Constructed from lead-free copper material.

Product Highlights

This adapter offers a reliable, flameless connection solution for various piping systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01164

Technical Specifications

• Material: Lead-Free Copper
• Operating Temperature Range: -20 ºF to 250 ºF
• Maximum Operating Pressure: 300 psi
• End Connection Type 1: Press
• End Connection Size 1: 1 in
• End Connection Type 2: MNPT
• End Connection Size 2: 3/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13, ASTM B-88 Type K, ASTM B-88 Type L, ASTM B-88 Type M
• A: 0.92 in
