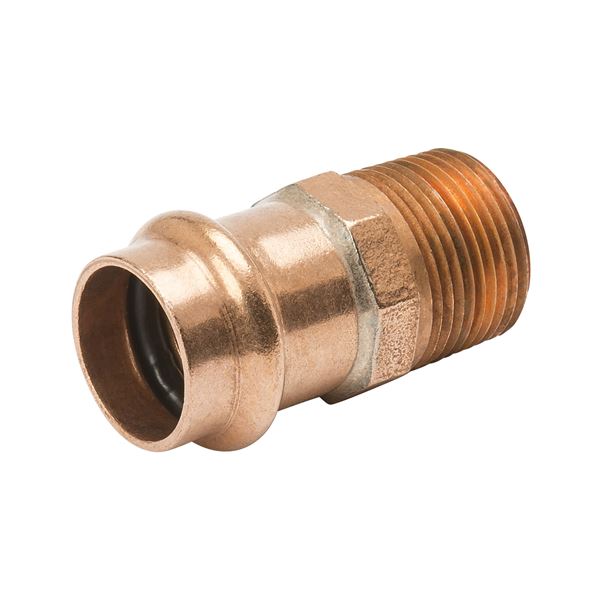

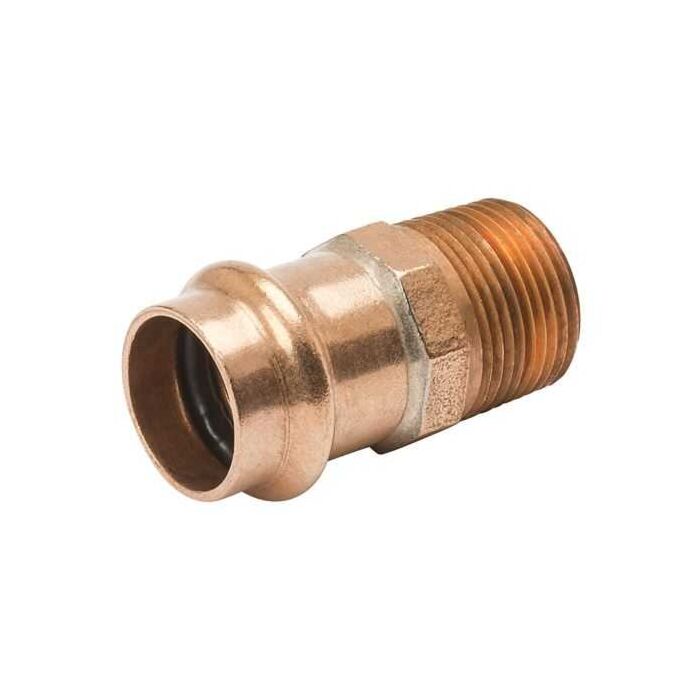

Mueller Streamline PF01147 PRS male reducing adapter (PxMPT) SD 3/4 P X 1/2 M adapter

Product Description

The MUELLER STREAMLINE PF01147 PRS™ Male Reducing Adapter (PxMPT) SD is a lead-free copper male adapter, P x MPT, measuring 3/4 inch by 1/2 inch. This fitting offers a flameless joining alternative for plumbing or mechanical applications, designed for copper tubing. It supports an operating pressure up to 300 psi and a temperature range from -20 °F to 250 °F, meeting ASME B16.51 and NSF/ANSI 61 standards.

• Provides a flameless joining solution for plumbing and mechanical systems.
• Constructed from lead-free copper, ensuring compliance with safety standards.
• Designed for press connections, accommodating 3/4 inch to 1/2 inch reductions.

Product Highlights

This copper-press male reducing adapter offers a flameless, lead-free solution for joining copper tubing in plumbing and mechanical systems, with a 300 psi max operating pressure.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01147
• Country of Origin: South Korea

Technical Specifications

• Material: Copper (Lead-Free)
• Operating Temperature Minimum: -20 °F
• Operating Temperature Maximum: 250 °F
• Operating Pressure Maximum: 300 psi
• End Type: Press
• End Size: 3/4 inch
• Second End Type: MNPT
• Second End Size: 1/2 inch
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• A Dimension: 0.90 inch
• Adapter Type: 3/4 P X 1/2 M
