Mueller Streamline PF01085 PRS™ Coupling Reducer (PxP) LD, Copper Reducer 2-1/2 feet' x 1-1/4 feet'

Product Description

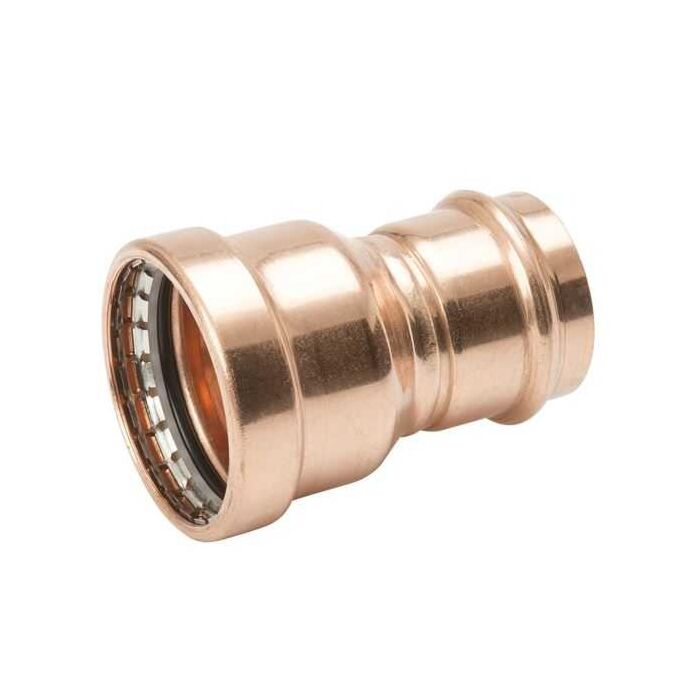

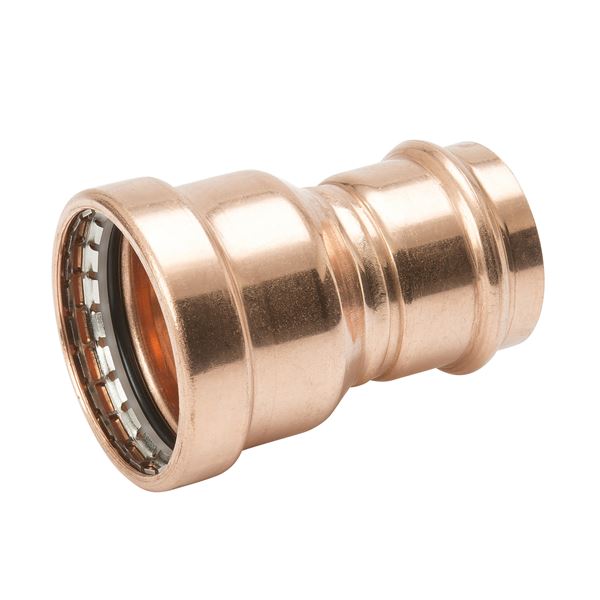

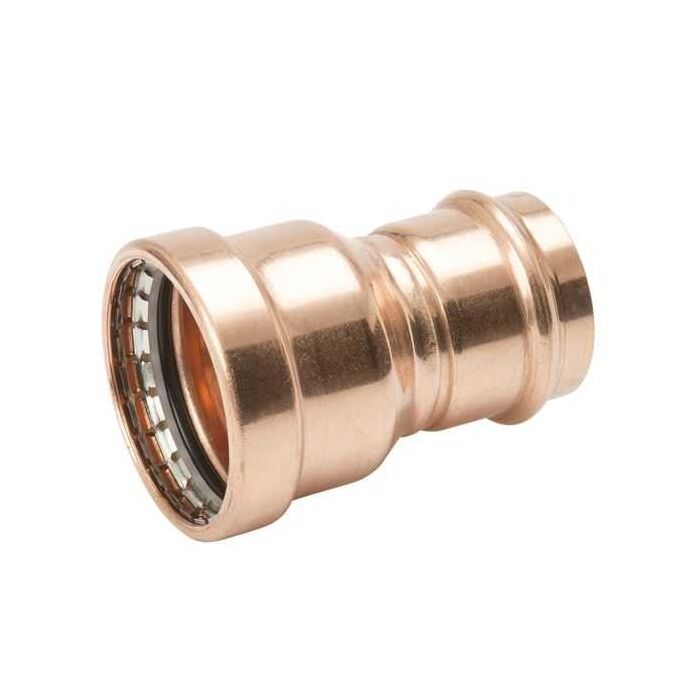

The MUELLER STREAMLINE PF01085 coupling reducer is a copper press-fit fitting designed to connect pipes of different diameters. It reduces from 2-1/2 inches to 1-1/4 inches, suitable for various piping applications. This reducer operates within a temperature range of -20 °F to 250 °F and can withstand a maximum operating pressure of 300 psi.

• Copper construction
• Press connection type
• Reduces from 2-1/2 inches to 1-1/4 inches

Product Highlights

Copper press-fit coupling reducer for reliable pipe diameter transitions in plumbing systems.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01085

Technical Specifications

• Material: Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• Connection Type: Press
• End Size: 2 1/2 in
• Second End Size: 1 1/4 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• X: 0.83 in
