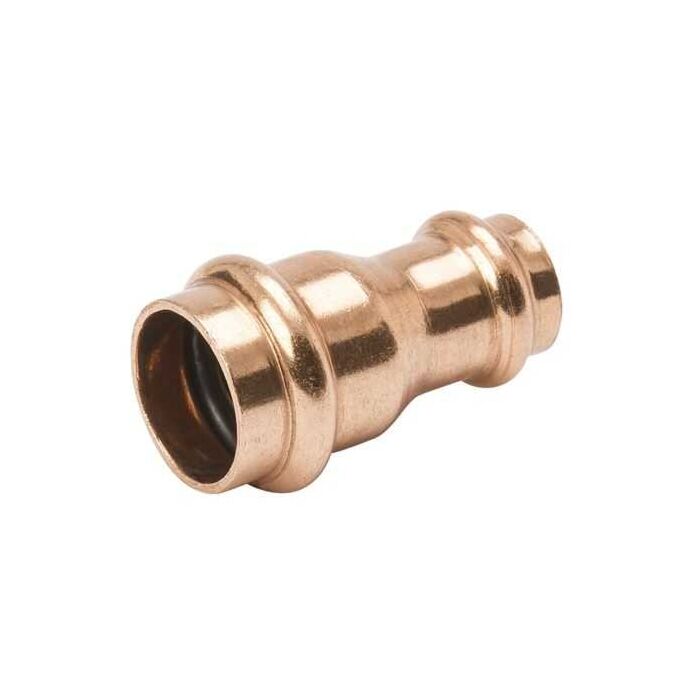

Mueller Streamline PF01060 Copper Press Reducer Coupling 1-1/4 inches x 1/2 inches

Product Description

The MUELLER STREAMLINE PF01060 is a copper press reducer coupling, specifically a P x P type fitting, designed for plumbing and mechanical applications. This 1-1/4 inch by 1/2 inch reducer offers a flameless joining alternative. Constructed from durable copper, it is engineered to withstand a maximum operating pressure of 300 PSI, ensuring reliable performance in various systems. It meets standards like ASME B16.51 and NSF/ANSI 61.

• Flameless joining alternative for plumbing or mechanical applications.
• P x P type reducer with 1-1/4 inch and 1/2 inch press ends.
• Constructed from copper, designed to withstand up to 300 PSI.

Product Highlights

Copper press reducer coupling for flameless joining in plumbing and mechanical systems, rated for 300 PSI.

Product Information

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PF01060

Technical Specifications

• Size: 1-1/4" x 1/2"
• Weight: 0.20 lb
• Material: Copper
• Minimum Operating Temperature: -20 °F
• Maximum Operating Temperature: 250 °F
• Maximum Operating Pressure: 300 psi
• End Type: Press
• First End Size: 1 1/4 in
• Second End Type: Press
• Second End Size: 1/2 in
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61, NSF/ANSI 372, CSA TIL-MSE-13
• Overall Length: 2.48 in
• Overall Height: 1.73 in
• Overall Width: 1.73 in
• Item Type: Reducer
