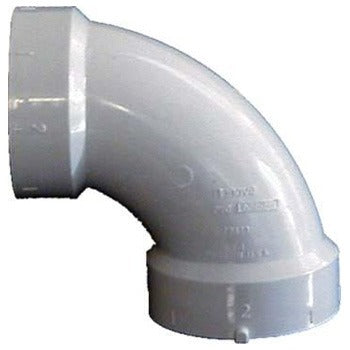

Mueller Streamline PDWVBENDMS142 Pvc Dwv 1/4 Bend 2 in

Product Description

The MUELLER STREAMLINE PDWVBENDMS142 is a 2-inch PVC DWV quarter bend fitting with hub by hub (HxH) connections. It provides a 90-degree change in direction within drain, waste, and vent piping systems. The fitting accepts solvent-weld connections at both ends, creating a permanent, leak-resistant joint. At 2 inches, it is sized for common residential and light commercial drain lines. Plumbers and pipefitters install this type of fitting during rough-in on new construction and remodel work wherever a smooth directional transition is required in a gravity-flow DWV system.

This quarter bend is suited for residential and light commercial plumbing applications including drain lines, waste stacks, and vent piping. It is commonly used beneath floor drains, behind wall fixtures, and within horizontal drain runs that require a 90-degree turn. The hub by hub configuration allows straight inline installation between two pipe segments without the need for additional couplings.

Key Features

• 90-degree directional change in a single fitting for compact drain runs
• Hub by hub (HxH) ends accept solvent-weld PVC pipe on both sides
• 2-inch diameter sized for standard residential drain and waste lines
• PVC construction provides corrosion resistance in drain, waste, and vent service
• Smooth interior bore supports unrestricted gravity flow

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Schedule 40 PVC DWV piping systems in residential and light commercial plumbing.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off the water supply and ensure the drain line is empty before cutting into an existing system. Solvent-weld connections require proper PVC primer and cement applied per the cement manufacturer instructions and allowed to cure before the system is pressurized or put into service. Do not apply open flame to PVC fittings during installation.

Technical Specifications

• Pipe Size: 2 inches
• Connection Type: Hub x Hub (HxH) solvent weld
• Material: PVC
• Fitting Type: 1/4 Bend (90-degree elbow)
• Application: DWV (Drain, Waste, Vent)

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: PDWVBENDMS142
