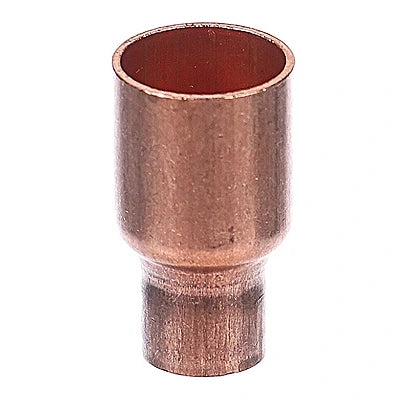

Mueller Streamline FTG00847 Copper Bushing Reducer

Product Description

The MUELLER STREAMLINE FTG00847 is a wrot copper extended bushing reducer used to transition between two different copper pipe sizes in soldered plumbing and HVAC refrigerant piping systems. It measures 0.88 inches on the fitting end and 0.50 inches on the copper end, with a female solder socket on one side and a male solder end on the other. The extended bushing design provides added engagement length for a secure, leak-free joint. At 1.5 inches in length, this compact fitting is sized for tight installations where space is limited. Licensed plumbers and HVAC technicians install this fitting as part of copper piping assemblies in both new construction and retrofit work.

This fitting is suited for residential and light commercial plumbing and HVAC piping applications where a size reduction is needed between copper pipe runs. The female solder by male solder connection accepts standard copper tubing at both ends and is compatible with lead-free solder as required by current plumbing codes. Typical install scenarios include supply line transitions, branch reductions, and refrigerant line modifications where a concentric reducer bushing is the preferred fitting type.

Key Features

• Wrot copper construction for high-pressure and high-temperature service
• Extended bushing profile provides additional solder surface engagement
• Female solder socket inlet at 0.88 inches, male solder outlet at 0.50 inches
• 1.5-inch overall length for use in confined spaces
• Compatible with lead-free solder per current plumbing codes

Compatibility

Designed as an OEM-style replacement and standard fitting for wrot copper soldered piping systems requiring a concentric reducer bushing in 0.88-inch to 0.50-inch sizes.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with local plumbing codes and IAPMO or IPC standards. Shut off and depressurize the water or refrigerant system and allow all components to cool completely before cutting into existing pipe. Clean and flux both the socket and male ends thoroughly before applying heat to ensure a full, void-free solder joint. Do not overheat the fitting, as excessive heat can damage the solder joint and compromise the connection.

Technical Specifications

• Material: Wrot Copper
• Connection Type: Female Solder x Male Solder
• Inlet Size: 0.88 inches (FTG)
• Outlet Size: 0.50 inches (C)
• Overall Length: 1.5 inches
• Shipping Weight: 0.058 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: FTG00847
