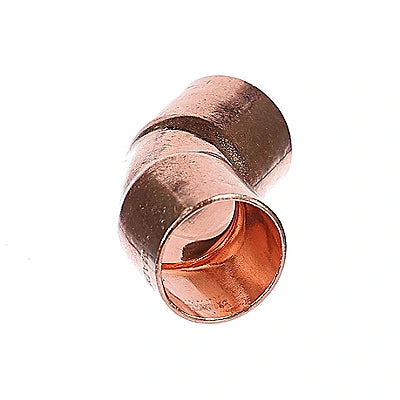

Mueller Streamline ELL00896 Copper 45 Deg Elbow 0.75 in

Product Description

The MUELLER STREAMLINE ELL00896 is a wrot copper 45-degree solder elbow designed for sweat-joint copper piping systems. It provides a 45-degree change in direction for 0.75-inch copper tubing using a cup-by-cup (C x C) connection on both ends. Wrot copper construction delivers consistent wall thickness and reliable joint integrity under pressure cycling. The fitting weighs 0.06 pounds and measures 1.61 inches tall by 2.24 inches in length, making it compact enough for tight-space installations. Plumbers and pipefitters install this fitting in domestic water, hydronic heating, and light commercial plumbing lines.

This elbow is suited for residential and light commercial copper piping applications where a 45-degree directional change is required. It is used in potable water supply lines, hot and cold distribution runs, and hydronic radiant or baseboard heating systems. The solder-joint design requires standard flux and lead-free solder per applicable plumbing codes. Typical installations occur in wall cavities, mechanical rooms, and above-ceiling runs where sweated fittings are the specified connection method.

Key Features

• Wrot copper construction for uniform grain structure and strong, leak-resistant sweat joints
• 45-degree angle for gradual directional changes that reduce flow turbulence compared to 90-degree turns
• Cup-by-cup (C x C) solder connection on both ends accepts standard 0.75-inch copper tubing
• Lightweight at 0.06 pounds, minimizing load on piping supports
• Compact dimensions of 1.61 inches height by 2.24 inches depth suit confined installation spaces

Compatibility

Designed as an OEM-style sweat fitting compatible with standard 0.75-inch nominal wrot copper piping systems using C x C solder-joint connections per ASTM and applicable plumbing standards.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and fully drain the line before cutting and fitting. Clean all mating surfaces with emery cloth and apply an appropriate flux before soldering with lead-free solder where potable water systems are involved. Allow the joint to cool completely before restoring system pressure.

Technical Specifications

• Material: Wrot Copper
• Connection Type: C x C (Solder)
• Connection Size: 0.75 inches x 0.75 inches
• Angle: 45 degrees
• Actual Height: 1.61 inches
• Actual Length/Depth: 2.24 inches
• Actual Width: 0.97 inches
• Actual Weight: 0.06 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00896
