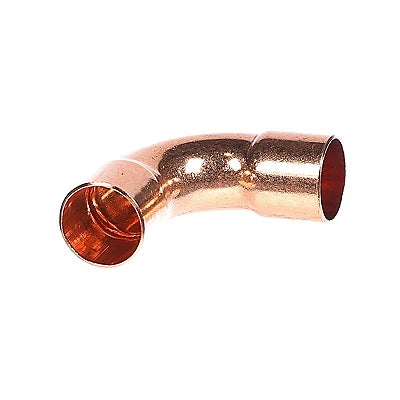

Mueller Streamline ELL00885 Copper 90 Deg Elbow 0.75 in

Product Description

The MUELLER STREAMLINE ELL00885 is a wrot copper 90-degree elbow fitting designed for soldered copper tube systems. Built to a long-radius profile, it produces smoother flow transitions than standard short-radius elbows, reducing turbulence and pressure drop in the line. The fitting uses a C x C (sweat) connection on both ends, sized at 3/4 inch, and is manufactured from wrot copper for consistent wall thickness and reliable joint strength. Licensed plumbers and pipefitters install this fitting in water supply, hydronic heating, and general-purpose copper piping systems. The actual dimensions are 2.17 inches in height and 2.17 inches in depth, with a body width of 0.84 inches, and the fitting weighs approximately 0.09 pounds.

This elbow is suited for residential and light commercial plumbing and hydronic applications where a 90-degree directional change is required in a 3/4-inch copper line. It is commonly used in potable water supply runs, radiant heating loops, and HVAC copper piping. The sweat-solder connection method is standard practice in copper system construction and repair, making this fitting compatible with any properly sized 3/4-inch copper tube that accepts a C x C solder joint.

Key Features

• Wrot copper construction provides consistent wall thickness and strong solder joints
• Long-radius design reduces flow turbulence and pressure drop compared to short-radius elbows
• 90-degree angle for right-angle directional changes in copper piping runs
• C x C (sweat) connection type compatible with standard copper tube and solder
• Compact profile: 2.17 inches height and depth, 0.84 inches width
• Lightweight at 0.09 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch copper tube systems using C x C solder connections in residential and commercial plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and applicable local codes. Shut off and drain the water supply before cutting into any existing line. Clean both the tube end and fitting socket with emery cloth or a fitting brush, apply flux evenly, and use lead-free solder per code requirements for potable water systems. Do not apply heat to a fitting that still contains water, as trapped moisture prevents proper solder flow and will result in a failed joint.

Technical Specifications

• Material: Wrot Copper
• Connection Type: C x C (Sweat Solder)
• Connection Size: 3/4 inch x 3/4 inch
• Angle: 90 degrees
• Adapter Type: Long Radius
• Actual Height: 2.17 inches
• Actual Depth: 2.17 inches
• Actual Width: 0.84 inches
• Actual Weight: 0.09 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00885
