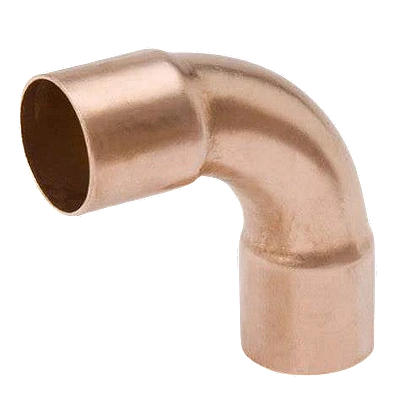

Mueller Streamline ELL00878 Wrot Copper 90 Deg Elbow 2-1/2 in

Product Description

The MUELLER STREAMLINE ELL00878 is a wrot copper 90-degree short radius elbow fitting designed for soldered copper piping systems. It accepts 2-1/2 inch C x C (cup-to-cup) connections on both ends, making it a direct sweat-fit component for directional changes in pressurized water, hydronic, or mechanical piping runs. At 1.19 pounds, the fitting is machined from wrot copper, which provides consistent wall thickness and reliable joint integrity when properly soldered. Licensed plumbers and mechanical contractors install this fitting in both new construction and retrofit applications where a 90-degree turn is required in a 2-1/2 inch copper line.

This elbow is suited for residential and light commercial plumbing, hydronic heating, and HVAC chilled or hot water piping. The short radius profile is useful in tighter mechanical spaces where a long-radius sweep is not practical. The C x C connection type requires standard solder and flux with a torch, following applicable plumbing codes such as the IPC or local amendments. No threading or press tooling is needed for installation.

Key Features

• Wrot copper construction for consistent wall thickness and strong solder joints
• 90-degree angle for right-angle directional changes in copper piping runs
• Short radius adapter type suits confined mechanical spaces
• 2-1/2 inch C x C connection on both ends for standard sweat-fit installation
• Actual dimensions: 4.56 inches height, 4.56 inches depth, 2.77 inches width

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-1/2 inch wrot copper soldered piping systems in residential and commercial plumbing and mechanical applications.

Installation Notes

Installation is performed by a licensed plumber or mechanical contractor. Shut off and drain the affected water or fluid system before cutting into the line. Clean pipe ends and fitting cups thoroughly with emery cloth and apply flux before soldering per IPC guidelines and local code requirements. Do not apply heat to a fitting while the line is under pressure or contains fluid.

Technical Specifications

• Material: Wrot Copper
• Connection Size: 2-1/2 x 2-1/2 inches
• Connection Type: C x C (Solder)
• Angle: 90 degrees
• Adapter Type: Short Radius
• Actual Height: 4.56 inches
• Actual Length/Depth: 4.56 inches
• Actual Width: 2.77 inches
• Actual Weight: 1.19 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00878
