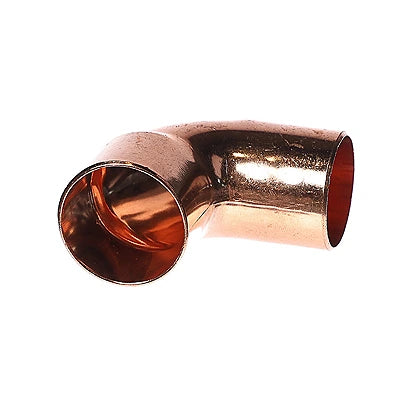

Mueller Streamline ELL00244 90 Degree Copper Street Elbow

Product Description

The MUELLER STREAMLINE ELL00244 is a 90-degree wrot copper street elbow designed for close-rough plumbing installations where a short-radius directional change is required. Manufactured from wrot copper with a FTG x C (fitting-by-copper) connection, this elbow accepts a copper tube end directly into one side and solders to a standard copper fitting socket on the other. The short-radius, street-pattern design keeps the fitting tight to the work and reduces overall assembly length. At 0.29 pounds and measuring 2.86 inches in height and length with a 1.49-inch width, it is compact and suited for confined spaces. Plumbers and pipefitters rely on this fitting in both residential and light commercial copper piping systems.

This elbow is used wherever a 90-degree change of direction is needed in a 1-1/4-inch copper piping run. The FTG x C configuration makes it a street elbow, meaning it can insert directly into a companion fitting without requiring an additional coupling, which saves time and reduces the number of joints in tight installations. Typical applications include domestic water supply, hydronic heating distribution, and drain-waste-vent rough-in work where close-rough dimensions are specified.

Key Features

• 90-degree angle for a full right-angle directional change in copper piping runs
• Wrot copper construction provides excellent pressure rating and corrosion resistance
• FTG x C (street) connection eliminates the need for an extra coupling at one end
• Short-radius, close-rough design minimizes the fitting footprint in tight spaces
• 1-1/4 x 1-1/4 inch connection size compatible with standard copper tube
• Lightweight at 0.29 pounds for easy one-hand positioning during soldering

Compatibility

Designed as an OEM-style sweat fitting for 1-1/4-inch copper piping systems using standard FTG x C solder connections, consistent with ASME B16.22 wrot copper fitting dimensions.

Installation Notes

Installation is performed by licensed plumbers or pipefitters using standard copper sweat-soldering technique. Shut off and drain the water supply before cutting into any existing line. Clean and flux all mating surfaces per the fitting manufacturer and applicable IPC or IFGC guidelines before applying heat. Avoid overheating the fitting, as excessive temperature can oxidize the copper and compromise the solder joint.

Technical Specifications

• Material: Wrot Copper
• Angle: 90 degrees
• Connection Size: 1-1/4 x 1-1/4 inches
• Connection Type: FTG x C
• Adapter Type: Short Radius, Street
• Actual Height: 2.86 inches
• Actual Length/Depth: 2.86 inches
• Actual Width: 1.49 inches
• Actual Weight: 0.29 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00244
