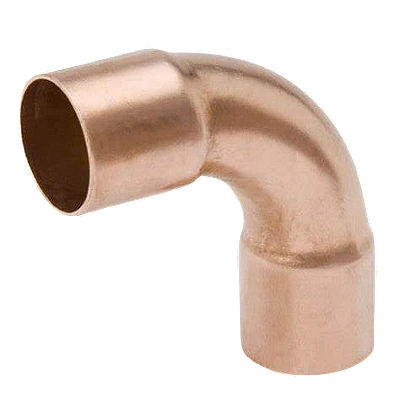

Mueller Streamline ELL00235 Copper 90 Degree Elbow 1/8 C X C

Product Description

The MUELLER STREAMLINE ELL00235 is a wrot copper 90-degree short radius elbow fitting designed for sweat (solder) connections in small-diameter copper tubing systems. With a 1/8-inch connection size and a C x C (copper-to-copper) configuration, this fitting allows a clean directional change in tight spaces. Wrot copper construction provides high strength and reliable corrosion resistance, making it well suited for refrigeration, HVAC, and plumbing applications where compact, leak-free joints are required. At 0.01 pounds, the fitting is lightweight and easy to handle on the job.

This elbow is used in residential and light commercial installations where 1/8-inch copper tubing requires a 90-degree turn within a confined run. Typical applications include refrigeration line sets, condensate drain assemblies, and small-bore plumbing connections. The short radius geometry keeps the bend tight, helping installers route tubing efficiently in panel enclosures, equipment compartments, and wall cavities. HVAC technicians and plumbers are the primary trades working with this fitting size.

Key Features

• Wrot copper construction for high strength and corrosion resistance
• 90-degree short radius bend for directional changes in tight spaces
• C x C sweat connections for standard soldered copper joints
• 1/8-inch connection size suits small-bore refrigeration and plumbing lines
• Compact profile at 0.84 inches in length and 0.3 inches in height

Compatibility

Designed as an OEM-style replacement and standard sweat fitting for 1/8-inch copper tubing systems in HVAC, refrigeration, and plumbing applications.

Installation Notes

Installation is performed by licensed plumbers or HVAC technicians using standard soldering tools including a torch, flux, and lead-free solder in accordance with applicable codes such as the IPC or IFGC. Shut off the water or refrigerant supply and depressurize the line before cutting into existing tubing. Clean and flux both the tube ends and fitting sockets thoroughly before applying heat to ensure a sound, leak-free joint. Allow the joint to cool completely before restoring pressure to the system.

Technical Specifications

• Material: Wrot Copper
• Connection Type: C x C (Sweat)
• Connection Size: 1/8 x 1/8 inches
• Angle: 90 degrees
• Adapter Type: Short Radius
• Actual Length/Depth: 0.84 inches
• Actual Height: 0.3 inches
• Actual Width: 0.3 inches
• Actual Weight: 0.01 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00235
