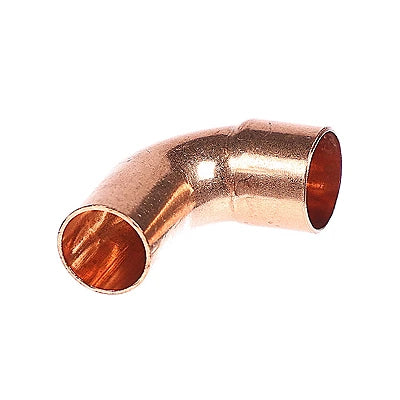

Mueller Streamline ELL00217 90 Degree Copper Street Elbow

Product Description

The MUELLER STREAMLINE ELL00217 is a 90-degree wrot copper street elbow designed for close-rough plumbing installations. This short-radius, street-pattern fitting connects sweat solder joints using a fitting-to-copper (FTG x C) configuration, allowing one end to insert directly into a standard copper fitting socket. At a nominal connection size of 5/8 inch on both ends, it is suited for tight-clearance applications where a standard long-radius elbow will not fit. Licensed plumbers and pipefitters install this fitting in residential and light commercial copper water distribution systems.

This elbow sees use in new construction and retrofit plumbing where close-rough dimensions are required. The FTG x C end configuration allows it to be used in series with other fittings without additional couplings, saving space in confined rough-in locations such as wall cavities, under-slab stub-outs, and mechanical room manifolds. No specific brand model compatibility is stated in the product data, but this fitting follows standard wrot copper fitting dimensions per ASME B16.22.

Key Features

• 90-degree change of direction in a short-radius, street-pattern form factor
• Wrot copper construction for soldering compatibility and corrosion resistance in water service
• FTG x C end connections allow back-to-back fitting assembly without additional couplings
• Close-rough adapter type suits tight-clearance rough-in conditions
• Lightweight at 0.08 pounds, minimizing added load in overhead or wall-run piping

Compatibility

Designed as an OEM-style wrot copper street fitting compatible with standard 5/8 inch copper tubing sweat-solder systems per ASME B16.22 dimensional standards.

Installation Notes

Installation is performed by a licensed plumber using standard copper sweat-soldering tools including a pipe cutter, emery cloth, flux, and a torch. Shut off and drain the water supply completely before cutting into any existing line. Follow local plumbing codes and IFGC or IPC guidelines for joint preparation, flux application, and solder type. Do not apply flame directly to the fitting socket for extended periods, as overheating can compromise the joint integrity of adjacent fittings.

Technical Specifications

• Material: Wrot Copper
• Angle: 90 degrees
• Connection Size: 5/8 x 5/8 inches
• Connection Type: FTG x C
• Adapter Type: Short Radius, Street
• Actual Height: 0.84 inches
• Actual Width: 1.86 inches
• Actual Length/Depth: 1.88 inches
• Actual Weight: 0.08 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00217
