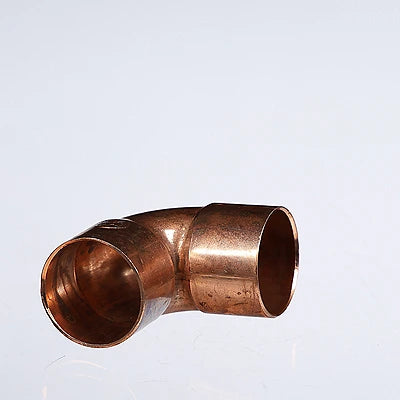

Mueller Streamline ELL00203 Wrot Copper 90 Elbow 1-1/2 C X C

Product Description

The MUELLER STREAMLINE ELL00203 is a wrot copper 90-degree short radius elbow designed for sweat (C x C) copper tube connections at 1-1/2 inch nominal size. It changes flow direction by 90 degrees in copper plumbing and hydronic systems. Wrot copper construction delivers consistent wall thickness and excellent solderability, making it a reliable choice for pressure and temperature applications common in commercial and residential plumbing. Licensed plumbers and pipefitters install this fitting as part of standard copper sweat assemblies. The short radius design suits tighter routing where long-radius sweep is not required.

This elbow is used in residential and light commercial plumbing, hydronic heating distribution lines, and domestic water supply systems wherever a 90-degree direction change is needed in a 1-1/2 inch copper line. The C x C end connections accept standard copper tubing for soldering in accordance with applicable plumbing codes. It is suited for installations where compact routing clearance limits the use of long-sweep fittings.

Key Features

• Wrot copper construction for uniform wall thickness and reliable solder joints
• 90-degree angle for direct right-angle direction changes in copper piping
• Short radius adapter type for tighter installation clearances
• C x C (sweat) connections on both ends, 1-1/2 inch nominal size
• Compact profile: 3.13 inches height, 3.13 inches length, 1.74 inches width

Compatibility

Designed as an OEM-style sweat fitting for use with standard 1-1/2 inch copper tubing in residential and commercial plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable IPC or local plumbing code. Shut off and drain the water supply completely before cutting or desoldering any existing pipe. Clean and flux all mating surfaces before applying heat; use lead-free solder where required by code. Do not apply heat to a fitting that contains water or is under pressure.

Technical Specifications

• Material: Wrot Copper
• Angle: 90 degrees
• Adapter Type: Short Radius
• Connection Type: C x C (Sweat)
• Connection Size: 1-1/2 x 1-1/2 inches
• Actual Height: 3.13 inches
• Actual Length/Depth: 3.13 inches
• Actual Width: 1.74 inches
• Actual Weight: 0.42 pounds

Standard Information

• Brand: MUELLER STREAMLINE
• Manufacturer Part Number: ELL00203
