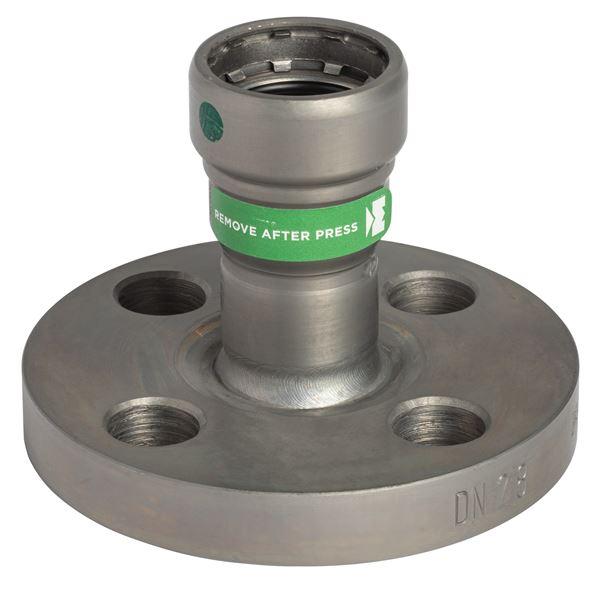

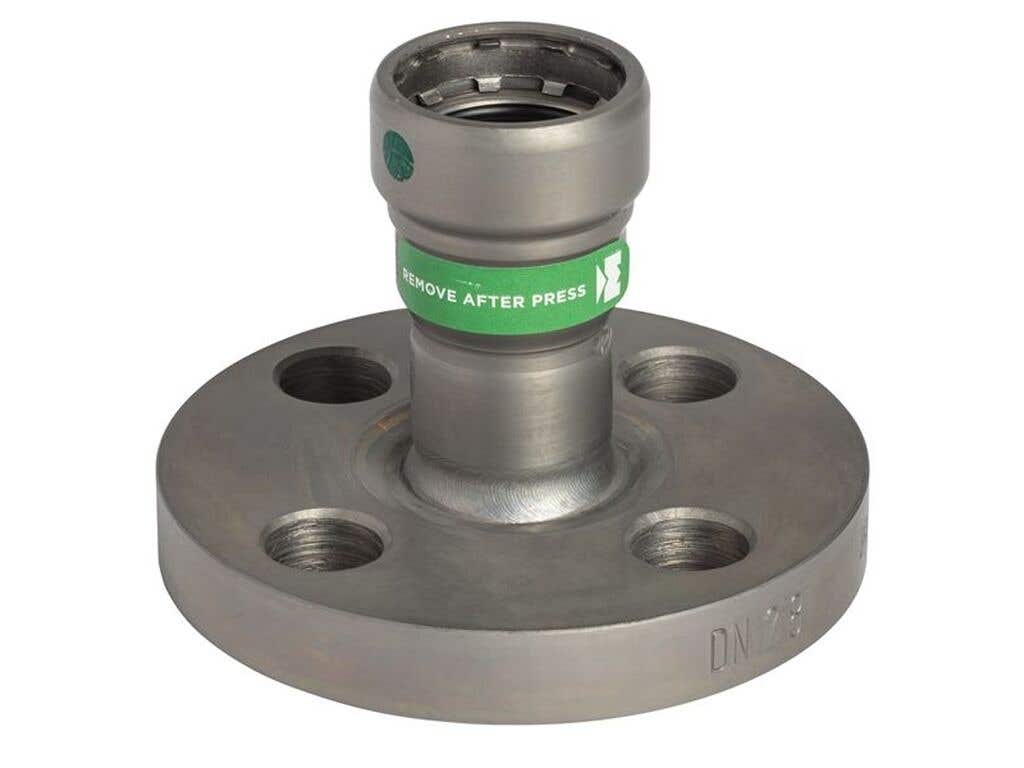

Mueller Streamline CP04114 STL Flange (P x Flange)

Product Description

The Mueller Streamline CP04114 STL Flange is made of carbon steel and features a press and flange end type. This flange is suitable for chilled water, hydronic heating, compressed air, and fire sprinkler systems. The maximum operating pressure for this fitting is two hundred psi.

• Constructed of durable carbon steel
• Works in temperatures up to two hundred fifty degrees Fahrenheit
• Designed with both press and flange ends

Product Highlights

This press flange is ideal for various plumbing applications, especially in systems requiring reliable connections.

Product Information

Standard Information

• Material: Carbon Steel
• Fitting Type: Press Flange

Technical Specifications

• Operating Temperature Min: -40 degrees Fahrenheit
• Operating Temperature Max: 250 degrees Fahrenheit
• Operating Pressure Max: 200 psi
• End Type: Press
• End Size: Three quarters inches
• Second End Type: Flange
• Overall Length: 3.96 inches
• Overall Height: 2.85 inches
• Overall Width: 3.96 inches
• Dimension A: 2.75 inches
• Dimension H: 1.67 inches
• Dimension L: 2.85 inches
• Qty Pcs / Bag: 1
• Master Qty Pcs / Box: 4
• Brand: Streamline Carbon Steel
