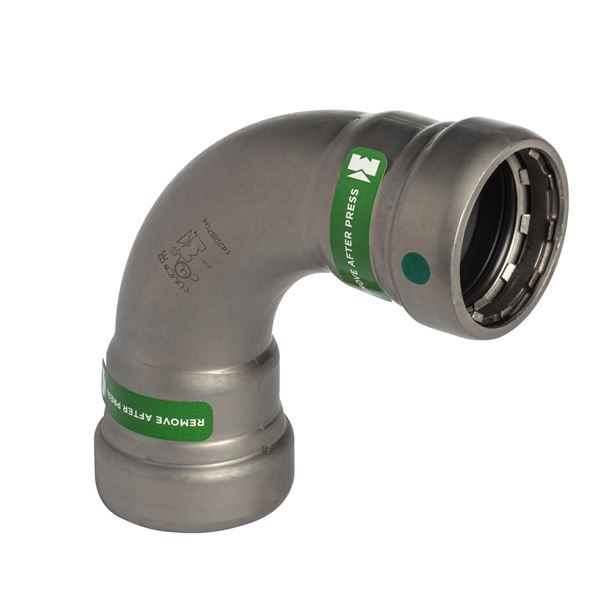

Mueller Streamline CP02063 STL 90 Elbow P x P

Product Description

The Mueller Streamline CP02063 is a carbon steel 90 degree elbow product with press end connections. The product is suitable for high-demand applications, able to handle a maximum operating pressure of 200 psi and a wide temperature range from minus forty degrees Fahrenheit to two hundred fifty degrees Fahrenheit. Both ends of the elbow are equipped with press connections, each measuring one and one-half inches.

• Constructed from carbon steel for durability.
• Features press end connections for secure joining.
• Suitable for operating temperatures from -40°F to 250°F.

Product Highlights

This elbow is created for durability and reliable connections in piping systems, ideal for changing the direction of piping seamlessly.

Product Information

Standard Information

• Material: Carbon Steel
• Operating Temperature [Min]: -40°F

Technical Specifications

• Operating Temperature [Max]: 250°F
• Operating Pressure [Max]: 200 psi
• End Type: Press
• End Size: 1 1/2 in
• Second End Type: Press
• Second End Size: 1 1/2 in
• Overall Length: 5.72 in
• Overall Height: 5.72 in
• Overall Width: 2.44 in
• X: 2.55 in
• Qty Pcs / Bag: 1
• Master Qty Pcs / Box: 4
